| Main Information | ||||||||||
| 1 | Manufacturer | WMTCNC | ||||||||

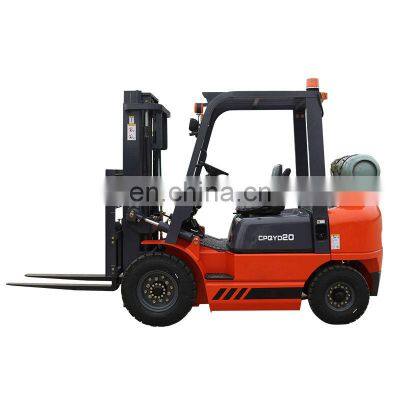

| 2 | Model | Unit | CPQD20 | CPQYD20 | ||||||
| 3 | Power type | LPG&Gasoline | ||||||||
| 4 | Rated capacity | kg | 2000 | |||||||
| 5 | Load center | mm | 500 | |||||||
| 6 | Operator type | Drive in seat | ||||||||
| Size | ||||||||||
| 7 | Max. lift height of mast with Load-backrest | mm | 4030 | |||||||
| 8 | Max.lift height of fork(standard) | mm | 3000 | |||||||
| 9 | Height of mast (standard) | mm | 2000 | |||||||
| 10 | Free lift height(standard) | mm | 170 | |||||||
| 11 | Height of Load-backrest | mm | 1010 | |||||||
| 12 | Distance from seat to overhead guard | mm | 1000 | |||||||
| 13 | overhead guard height | mm | 2070 | |||||||
| 14 | Length with fork/with out fork | mm | 2502 | |||||||
| 15 | Front overhang | mm | 477 | |||||||
| 16 | Rear overhang | mm | 420 | |||||||
| 17 | Wheel base | mm | 1600 | |||||||
| 18 | The height of traction pin | mm | 290 | |||||||
| 19 | Min. ground clearance | mm | 110 | |||||||
| 20 | Overall width | mm | 1170 | |||||||
| 21 | The distance between forks | mm | 1024/200 | |||||||
| 22 | Tread(front /rear) | mm | 970/970 | |||||||
| 23 | Min. Turning radius(outside) | mm | 2170 | |||||||
| 24 | Min. Turning radius(inside) | mm | 160 | |||||||
| 25 | Min. Intersecting aisle | mm | 2200 | |||||||
| 26 | Mast tilt angle | deg | 6° / 12° | |||||||
| 27 | Fork size | mm | 920x100x45 | |||||||
| Performance | ||||||||||
| 28 | Speeds | Max.Drive speeds(with/without load) | km/h | 17/19 | ||||||
| 29 | Lifting speeds (with load) | mm/s | 530/550 | |||||||
| 30 | Lowering speeds(with /without full load) | mm/s | 450/550 | |||||||
| 31 | Max. tractive force | KN | 20/15 | 21/15 | ||||||
| 32 | Max.grade ability (with/without full load) | % | 21/20 | 27/20 | ||||||
| Weight | ||||||||||
| 33 | Total weight | kg | 3320 | |||||||
| 34 | Weight Distribution full load (front/ rear) | kg | 4788/532 | |||||||
| 35 | Weight Distribution zero load(front / rear) | kg | 1328/1992 | |||||||
| Wheels and Tyres | ||||||||||
| 36 | Quantity of wheels | 2 X / 2 | ||||||||
| 37 | Type of tyres | Penumatic tires | ||||||||
| 38 | Tires | Front | 7.0-12-12PR | |||||||
| 39 | Rear | 6.00-9-10PRR | ||||||||
| 40 | Driving Brake | Hydraumatic pedal | ||||||||
| 41 | Parking Brake | Mechanical manual | ||||||||
| Control device for driving and transmitting | ||||||||||
| 42 | Battery | V/AH | 12/80 | |||||||
| 43 | Engine (standard) | Model | GQ-4Y | |||||||
| 44 | Rated output | kw/rpm | 47/2800 | |||||||
| 45 | Rated torque | N.m/rpm | 154/1800 | |||||||
| 46 | No.of cylinder | 4-90X86 | ||||||||
| 47 | Displacement | L | 2.237 | |||||||
| 48 | Fuel tank capacity | L | 60 | |||||||
| 49 | Number of speeds for transmission | 2-2 Hand shift transmission / 1-1 Power shift transmissio | ||||||||
