US$2,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Horizontal Axis
Overall Dimension
532*288*134
Transport Package
Iron Shellframe Box
Production Capacity
5000sets/Year
Product Description

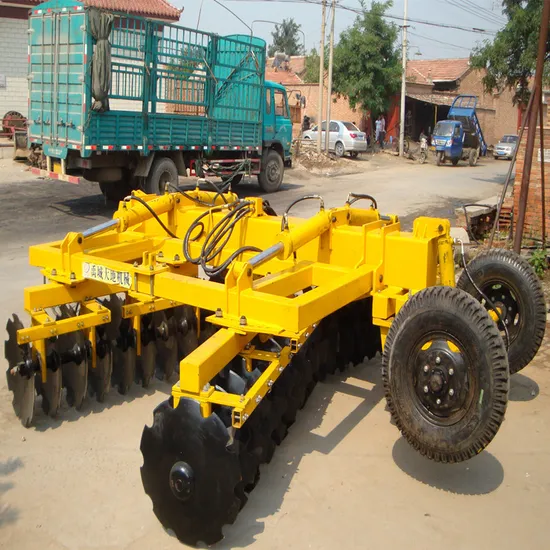

1BZDZ -6.2 Wing Folded Heavy-Duty Contraposition Hydraulic Wing Disc Harrow
1BZDZ series wing-folded heavy-duty disc harrow are mainly used for cleaning away stubble of plants before tillage,or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields,they can also be used as a plough for primary tillage in dry cultivated fields. The series produced are all fitted with hydraulic rubber wheel for transportation.It is easy to be transported and change direction on the edge of fields.
1BZDZ -6.2 wing-folded heavy-duty contraposition hydraulic disc harrow are constructed around a central robust mono frame , can be installed by 32-66 discs, divided into front and rear two gangs notched disc. It's suitable for destroying, sticky heavy soils, low wetland, straw, corn crop land or land area of high crop plow before stubble plowing. The harrows have 230mm and 240mm,270mm three varieties disc space for choices. Different disc spacing has different effect:230mm and 240mm disc spacing is suitable for multi-purpose,270mm disc spacing is suitable for deep coarse plow stubble plowing, or without the plow surface farming.
| Model | Unit | 1BZDZ-4.4 | 1BZDZ-4.8 | 1BZDZ-5.3 | 1BZDZ-6.2 |
| Overall dimension | cm | 580x450x150 | 580x495x150 | 580x540x150 | 580*638*150 |
| Weight | kg | 3100-3150 | 3250-3300 | 3400-3450 | 4150-4200 |
| Working width | m | 4.4 | 4.8 | 5.3 | 6.2 |
| Working depth | cm | 20 |
| Blade spacing | mm | 230(or can choose 200,240,270) |
| No of disc | pc | 40 | 44 | 48 | 56 |
| Dia.of disc | mm | 660 |
| Transport clearance | mm | >200 |
| Productivity | ha/h | 2.7 | 3.2 | 3.8 | 4.65 |
| Matched power | kw | 135-180 | 150-200 | 165-220 | 220-260 |
| Linkage | | Trailed |
>>
