Product Details
Product Description
Product Description

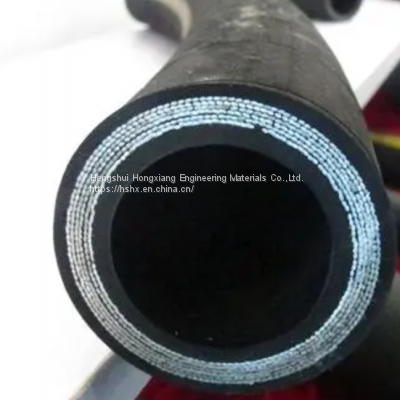

SAE 100 R15 High Pressure Wire Spiral Hose is often used in working conditions where the pressure is extremely high. Its reinforcement layer is wounded with four or six layers of high-strength thick steel wire, the inner tube and the cover layer also are made of high-quality rubber, so this kind of hydraulic hose usually used to convey hydraulic oil, lubricating oil, emulsion, glycol and water, etc. And it has outstanding features such as wear- resistance, corrosion- resistance, weathering-resistance, ozone-resistance, cutting-resistance, aging-resistance and sunlight resistance.
Applicable Specification：SAE 100 R15
Working temperature: -40 °C to +100 °C; (-40 °F to +212 °F).
| Inside Diameter(ID) | Reinforcement Diameter (RD) | Outside Diameter (OD) | Max Working Pressure | Min Burst Pressure | Bend Radius | Weight |
| DN | inch | mm | mm | mm | MPa | psi | MPa | psi | mm | Kg/mt |
| -16 | 1 " | 25.4 | 35.8 | 39.5 | 42 | 6090 | 168 | 24360 | 330 | 2.04 |
| -20 | 1-1/4 " | 31.8 | 47.8 | 50.8 | 42 | 6090 | 168 | 24360 | 445 | 3.97 |
| -24 | 1-1/2 " | 38.1 | 54.8 | 58.0 | 42 | 6090 | 168 | 24360 | 530 | 4.77 |
| -32 | 2 " | 51.1 | 66.6 | 71.0 | 42 | 6090 | 168 | 24360 | 660 | 6.77 |
| -40 | 2-1/2 " | 63.5 | 82.0 | 86.0 | 42 | 6090 | 168 | 24360 | 760 | 9.29 |
>>
