China Manufacturer Agri Land Big Stone Rock Picker Removal Farmland Collecting Picker Machine for Sale with Best Price

US$18,700.00 1 Piece (MOQ)

Basic Info.

Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Blue
Warranty
1 Year
Transport Package
Export Wooden Box
Specification
7000x2700x2700
Trademark
VKSPOWER
Origin
Qingdao, China
HS Code
843280
Production Capacity
300units/Month

Product Description

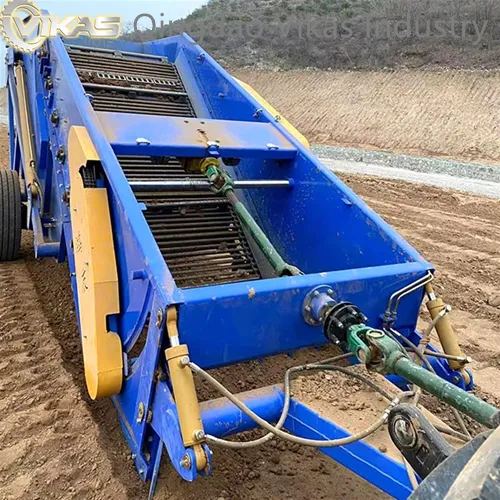

VIKAS 12JS Heavy Stone Picker

VIKAS 12JS Stone Picker
Wasteland reclamation stone picker
Easier to enter the soil, wide range of applications, quick stone cleaning.
Usage Scenarios: Stone picking in large areas of farmland, construction waste removal, mining area reclamation, homestead reclamation, debris flow impact repair.
Advantages: high stone picking efficiency and suitable for different soils.
Solve the problem of difficulty and high cost of cleaning stones in the soil.
Application:It can be used in sandy soil, plains, hills, mountains and other terrains to clean stones in farmland soil and stones on house demolition floors.
Model 12JS-130 12JS-160 12JS-190
Dimension(mm) 6850x2380x2460 7000x2700x2650 7000x2700x2700
Working Speed 1-2km/h 2-3km/h 4km/h
Picking Device digging tip shovel+rock tooth roller
Working Width 1300mm 1600mm 1900mm
Working Depth 100-250mm
Separation Device Grille screen
Conveying Device Grid Screen Conveyor Chain
Collecting method Stone collecting box
Box volume 3m³ 3.6m³ 4.1m³
Discharge method Fluid pressure
Tire model 295/60R22.5 445/45R19.5 445/45R19.5
Wheel Track 1980mm 2040mm 2040mm
Supporting Tractor power 140hp-220hp 150hp-220hp >200hp

Advantages:
1.The use of thickened alloy conveyor chains reduces stone blockage and enables faster soil and stone separation.
2.Super-hard steel soil entry shovel with replaceable tooth head and super impact resistance.
3.Floating stone picker avoid stone accumulation.
4.Well-known brand hydraulic control system.
Easy to operate and high work efficiency.
5.Special high-strength engineering tires, long tire service life and safer operation.
