CCS, BV, ABS Approved Marine Ship Telescopic Folding Arm Crane

Product Details

Product Description

Product Description

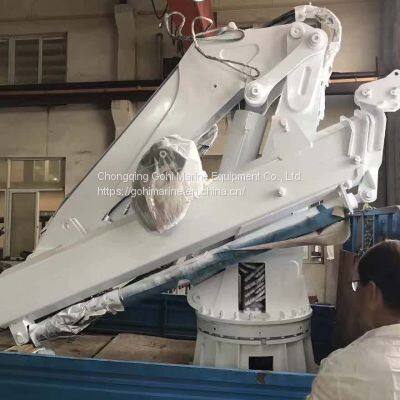

CCS, BV, ABS Approved Marine Ship Telescopic Folding Arm Crane
There are various forms of hydraulic folding telescopic cranes for marine use, such as folding arms, telescoping, and folding. It is used for lifting various daily necessities and seafood which are not very heavy, and widely used in commercial ships, academic research, maritime and many other fields. The ship crane adopts anti-corrosion design, with rotating gears and a relatively light weight, compact structure, it solves the problem of tight space for small ships. However, the crane can meet the lifting requirements of 34000N/M. It is a widely used marine crane.
Features:
* Flexible and reliable action
* High loading efficiency of ship crane
* Easy to operate
* Higher quality hydraulic system
* Deck arrangement is relatively simple, and requires a small deck area
* Suitable for hoisting of important pieces
Advantage:
1. Adopt advanced R & D and technical methods to ensure the reliability of the product.
2. Integral lifting winch mechanism, higher working efficiency, longer life of hydraulic system.
3.Dual pump system with separate hydraulic circuit for hoist and luffing/slewing to ensure efficient cargo handling.
4.Fail-safe brakes on all movements.
5. Equipped with hydraulic oil cooler, it can operate in high temperature environment.
6. Base on many year's experience of crane and harbor equipment.
Structure:
The folding boom telescopic marine crane is a lifting equipment designed specifically for ships, with strong lifting capacity and efficient work efficiency. This crane is fixed to the ship deck through flanges or welding, mainly used for lifting and moving heavy goods, such as ordinary goods, equipment, personnel, etc.
The folding arm telescopic crane adopts advanced hydraulic system, which can achieve accurate control and intelligent operation. It has strong stability and safety, and can operate safely and reliably in harsh working environments.
The crane is made of high-strength steel plates and coated with epoxy zinc rich Jotun paint, which has good durability and corrosion resistance. At the same time, the crane also has a compact structure, which is convenient for maintenance, installation, and repair, and can effectively save time and cost of ship maintenance.

Nodel	Working Radius (m)	Loading(kg)	Lifting Torque	Slewing Torque(kNm)	Base Size (mm)	Slewing Dgree	Hydraulic Pressure (bar)	Weight(kg)
			(kNm)
GCF20	0.6-3.0	500-300	9-15	15	260	400	250	300-380
GCF45	0.8-4.0	1000-500	20-40	45	500	400	250	560-860
GCF80	1.5-6.0	1200-500	30-72	80	500	400	250	650-950
GCF100	4.6-10.8	2200-750	81-95.6	100	620	360	250	1730-2030
GCF120	4.6-10.8	2600-900	97.2-115.5	120	620	360	250	1750-2100
GCF150	4.55-12.85	3280-830	106.6-147.3	150	800	360	250	2120-2500
GCF180	4.55-12.85	3900-1020	131-173.5	180	800	360	250	2270-2750
GCF220	4.4-15	4900-850	128-211	220	900	360	250	3050-3900
GCF270	4.4-15	6100-1100	165-256	270	900	360	250	3600-4340
GCF320	5.35-17.85	5900-1080	192.8-308.7	320	1050	360	250	4950-6200
GCF370	5.35-17.85	6900-1250	223.1-363.8	370	1250	360	250	5300-6800
GCF450	5.5-21.5	8150-1300	279.5-446.6	450	1550	360	250	7800-10500
GCF550	5.5-21.5	9900-1650	354.8-539	550	1550	360	205	8500-11250

---
