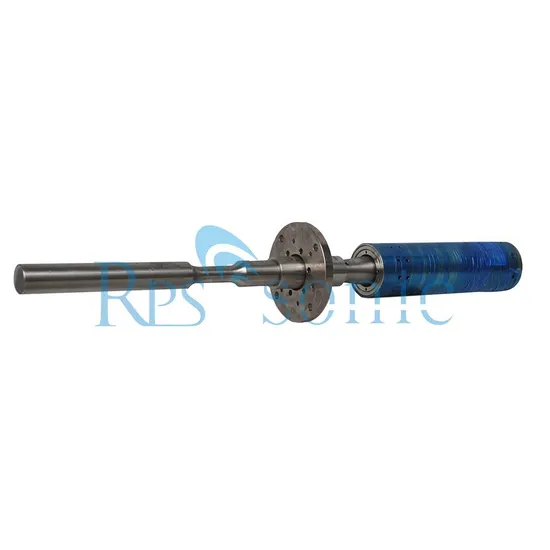

15kHz 20kHz Ultrasonic Disperment Equipment

Product Description

20Khz Ultrasonic dispersion and emulsifier equipment

Model	SONO20-1000	SONO20-2000	SONO15-3000	SONO20-3000
Frequency	20±0.5 KHz	20±0.5 KHz	15±0.5 KHz	20±0.5 KHz
Power	1000 W	2000 W	3000 W	3000 W
Voltage	220/110V	220/110V	220/110V	220/110V
Temperature	300 ºC	300 ºC	300 ºC	300 ºC
Pressure	35 MPa	35 MPa	35 MPa	35 MPa
Intensity of sound	20 W/cm²	40 W/cm²	60 W/cm²	60 W/cm²
Max Capacity	10 L/Min	15 L/Min	20 L/Min	20 L/Min
Tip Head Material	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy

Power ultrasound is well known for its intense and precisely controllable milling and dispersing effects. Industrial ultrasonicators provide a highly uniform particle size distribution in the micron- and nano-range. Industrial ultrasonicators process easily large volume streams of high viscosities and fulfil a homogeneous wetting, dispersing, deagglomeration and milling.
Paint Manufacturing with UltrasoundFormulation: Whether high viscosities, high particle loads, aqueous- or solvent-based - with Hielscher's industrial inline ultrasonicators you can process any formulation. Micron- and Nano-Size: The cavitational high shear forces reduce particles to minute particle diameters and provide an uniform dispersion. Optical Properties: To obtain the correct optical properties, pigment particle size have to be controlled. Usually, opacity correlates with particle size: the finer the particle size, the more opacity. For example, TiO2 is specifically processed to a particle size of 0.20 to 0.3 micron, which is approximately the equivalent to one-half the wavelength of light. Ultrasonication reduces the TiO2 pigments to their optimum size, so that ultimate hiding is obtained. High-Performance Particles: Smaller particle sizes result in greater colour saturation, colour consistency and stability. The intense, yet precisely controllable ultrasound forces allow for producing modified and functionalized nano-particles, such as coated particles, SWNTs, MWCNTs and core-shell particles. Such particles show unique characteristics and elevate paint or coating formulations to a new level of quality and functionality (e.g. UV resistance, scratch resistance, strength, adhesiveness, high heat resistance, infrared and solar reflectivity). Modified Particles: Surface modified pigments have very low viscosity at high pigment loadings (2.5cP at 10% solids), superior suspension stability and high purityUse ultrasonics for the production of final formulations master batches of pigment paste refining particles after conventional milling Ultrasonic Paint Processing Ultrasonic Processing: 7x UIP1000hdT Information Request Name Email address (required) Product or area of interest Note our privacy policy. Request information For the production of paint, the components such as pigments, binders/ film formers, diluents/ solvents, resins, fillers and additives have to mixed together into a homogeneous formulation. Pigments are the determining component that gives paint its color. The most important white pigment is TiO2, which needs to be milled to a optimum particle size between 0.2 and 0.3 microns in diameter to show the desired grade of whiteness, brightness, opacity and a very high refractive index. The ultrasonic shear forces provide a very effective and energy-effective deagglomeration and dispersion of TiO2 particles (see chart below). Ultrasonic milling and dispersing influences the quality of paint improving its color strength, density, fineness of grinding, dispersion and rheology.
Dispersion of Nanoparticles
Ultrasonic grinding and dispersing is often the only method to process nano particles efficiently in order to obtain primary particles. A small primary particle size results in a large surface area and correlates with the expression of unique particle characteristics and functionalities. At the same time, a smaller particle size is associated with a high surface energy for more severe aggregation and reactivity, so that the intense ultrasonic dispersing forces are required to disperse the nano particles homogeneously into the formulation. Furthermore, an ultrasonic surface treatment can modify the nano particles which leads to improved dispersability, dispersion stability, hydrophobicity and other features. Researchers have recommended the ultrasonic dispersion method for nano particles as preferred solution, "because the material dispersed by the ultrasonic method is much purer than that produced by bead milling.

---
