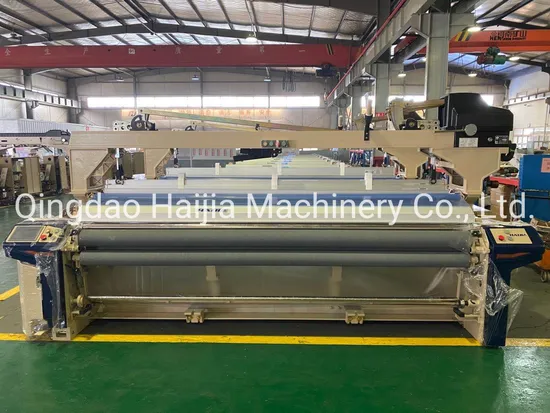

Hw 3851-280cm Single Nozzle 6PCS Frame Niupai Cam Water Jet Loom

Product Description

Company Overview
Founded in 1995, Haijia Machinery is a professional manufacturer of shuttleless looms in China
integrating R&D, manufacturing, sales, international trade and services. The main products
include "Haijia" brand HW series water jet looms and HA series air jet looms. After the appraisal by
China Textile Machinery Association, the technical level of water jet looms produced by Haijia
Machinery has reached the international advanced level, and the market share has been leading the world
for many years. The company adheres to the corporate mission of providing customers with competitive
weaving solutions and services, and continues to create value for customers.
With the responsibility of revitalizing national brands, it will surely become a world famous brand in
the Chinese loom industry.
Machine Model
Water Jet Loom
HW3851; HW3873 ; HW861C; HW4008; HW4010; HW4012 HW5012; HW8010
Air Jet Loom
HA-N ; HA-9010
Machine Specification

Item		Standard specifications	option
Reed space	Nominal(cm)	150,170,190,210,230,260,280,320,340 360
	Neck in(mm)	0--600mm
Weaving scope	Weft Insertion Rate	1400-2200M/min
	Filament	8D-5000D
Weft selection		Single/Double /Three/Four Nozzle
Power		Super start motor, Direct drive Motor
	The motor rating(KW)	1.8, 2.2, 2.8, 3.0 , 3.7 ,4.0 , 4.2, 4.5
Weft insertion		Main nozzle, deputy nozzle together, use special reed	tensile
		Auxiliary main nozzle
		Deputy nozzle relay control
Shedding		Crank shedding
		Upper cam shedding
		Upper dobby shedding
Let off		Mechanical or Electronic
	Variable dis dia(mm)	800or 1000
Take up		Mechanical or Electronic
	The largest cloth diameter(mm)	φ520
	Weft density range	7.1-80.3 pick//cm(18-204pick/inch)
	Weaving length counting	Displayed on the keyboard display, with the function of scale parking
Beating-up		Crank type sley feet more beating -up mechanism
		Four linkage beating-up
Measuring weft Storage		Electric drum weft
Leno		Planetary gear type
Cutter		Mechanical scissors
Stop device	Weft stop	Reflex detector
	Warp stop		6 columns batching motion
	Other	Wring side,yarn end processing broken parking
	Fault display	Operating screen
		4 color indicator light display
Automation		The computer control system
		Monitoring and self diagnosis function

CNC Workshop
The company is equipped with advanced CNC equipment, high-precision imported
processing center, and adopts information management methods to achieve independent
precision machining of precision parts of key parts of the loom. The processing accuracy
of key parts and components reaches 0.01mm, greatly improving the whole machine Stability
and startup efficiency.
Painting Workshop
The spraying workshop adopts the fully-automatic coating production line and spraying robot
independently developed by the company, and uses the same electrophoretic coating process
as car that of automobile production to ensure that the inner and outer surfaces of complex
workpieces are even and smooth, which greatly improves the corrosion resistance of the workpieces.
Environmentally friendly surface treatment, electrophoretic coating, topcoating process, and coating
film drying process are all automated to improve the quality of the workpiece coating, have the same
salt spray resistance as the car, and the appearance is more excellent.Improve the corrosion resistance
of the inner cavity of the workpiece, strong adhesion, long anti-rust time.
Assembly shop
The company adopts the whole machine assembly line, through strict quality management,
finely differentiates the assembly process flow, uses special tools to fix the torque to fasten the connectors,
and optimizes the quality control of the product through the technology of the entire assembly line.
Cost-effectiveness and quality have strict requirements, ensuring the quality of the whole organization.
Quality Control Workshop
The use of advanced inspection and testing equipment to ensure the pass rate of production
products in each process, strictly control the quality fluctuations, so as to ensure the product quality
of the whole machine. Improve product production process through inspection,
reduce quality cost and enhance product comprehensive competitiveness
Customer Representative
Exhibition Site

---
