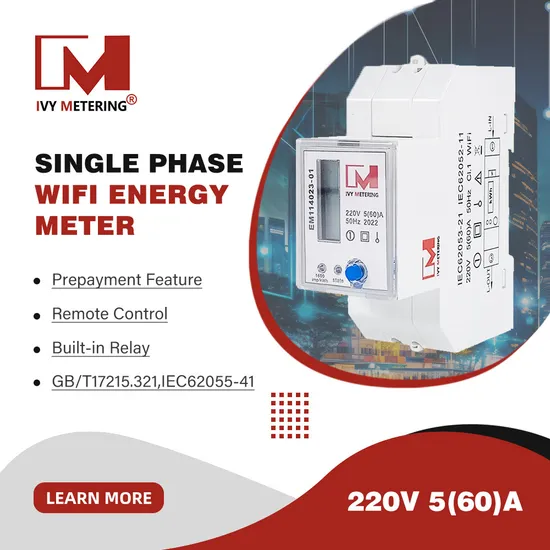

Single Phase Energy Energy Meter Tuya Smart Meters WiFi Energy Meters

US$20.00-35.00 1 Piece (MOQ)

Basic Info.

Model NO.
EM114023-01
Display
Digital
Installation
Direct Connected
Usage
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter, Reactive Energy Meter, Multi-rate Watt-hour Meters, Maximum Demand Meter
Electric Equipment
Single-phase
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
RoHS, ISO, CE, IEC
Customized
Customized
Voltage
220V
Current
5(60)a
Impulse Constant
1600imp/Kwh
LCD Display
LCD5+1
Temp. Range
-20~70 Degree
Annual Average Humidity
75%
Maximum Humidity
95%
Frequency
50Hz
Accuracy Class
Cl.1.0
Starting Current
0.4%Ib
Power Consumption
<2W / <10va
Reference Standard
GB/T17215.321,IEC62055-41
Transport Package
Cartons
Specification
36*90*72mm
Trademark
IVY METERING
Origin
Zhejiang, China
HS Code
9028301300
Production Capacity
8, 000, 000.00/ Year

Product Description


Cautions:
1.About AC/DC Energy Meter
(1) AC or DC- Generally speaking alternating current or direct current shall be the first factor.
(2) We also have DC meter when you need to measure the Direct Current.
2.About Function
(1) As the content is limited, all functions mentioned above are the main functions
(2) Other functions such as TOU, load control, friendly hours,RTC, plz refer to the technical specification or contact with our sales team.
3.About Application
(1) The applications only for examples, for the pratical situation the energy meter can also be used for other applications.
(2) Welcome to inquiry if you are not sure about the functions or application, we have free technical support.
