Product Description
Product Description

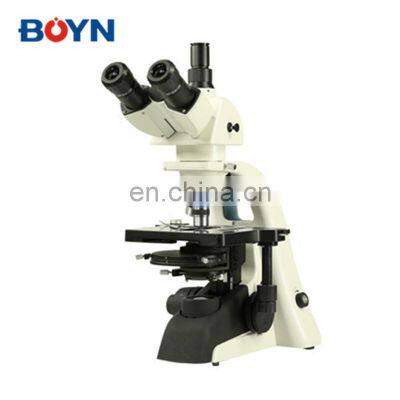

PH100-PG Life Science Geology Material Science & Forensics 360 roatable portable polarizing microscope
PH100-PG
Product description
Phenix PH100-PG polarizing microscope is part of the PH series comprising a range of models with outstanding system simplicity and optical performance for Life Science, Geology, Material Science & Forensics.
To meet increasing demands for a dedicated, professional polarizing microscope, the PH100-PG features strain-free optics built-up around a sturdy frame with centerable objectives.
Polarization Condenser Polarizer
Polarization Condenser :NA.0.85,aperture adjustable, up and down
360°roatable,we have 0,30,45,90,180,270,315 degree identification
Analyzer
Inner analyzer,it's easy to switch normal and polarziation observing,90° roatable with scale,height and centre adjustable.
Eyepiece
Polarization Objectives
Technical parameters
Parts
| Specification
| PH100-PG-A
| PH100-PG-B
|
Observing Style
| Transparent
| YES
| YES
|
Total Magnification
| 40X-400X
| YES
| |
40X-630X
| | YES
|
Eyepiece
| WF10X/18mm
| YES
| YES
|
Observing Tube
| Trinocular,45°Tilting,Tube Distance 55-75mm
| YES
| YES
|
Middle Tube
| Built-in Aanlyzer ,90 degree roatable with scale
| YES
| YES
|
Rotary Bertrand lens Height and Centre adjustable
| YES
| YES
|
λ Compensator
| YES
| YES
|
λ/4 Compensator
| YES
| YES
|
Quartz Wedge Compensator
| YES
| YES
|
Nosepiece
| Four Hole
| YES
| |
Five Hole
| | YES
|
Unstressed Plan Objectives
| without coverslip,PL 4X/-
| YES
| YES
|
without coverslip,PL 10X/-
| YES
| YES
|
without coverslip0.17,PL 25X/0.40
| YES
| YES
|
with coverslip 0.17,PL 40X/0.65(S)
| YES
| YES
|
with coverslip 0.17,PL 60X/0.85(S)
| | YES
|
Stand and Focusing
| Coaxial coarse & fine focusing knob, coarse focusing range 26mm, fine focusing graduation 0.002mm
| YES
| YES
|
Stage
| Rotatable Stage,360 degree scale,grid:6' centre adjustable with lock unit,dia of circle:160mm
| YES
| YES
|
Transimission
| Polarizer:360°rotatable,0,30,45,90,180,270,315 dgree grade
| YES
| YES
|
Illuminator:LED
| YES
| YES
|
Illumination:LED 3W,brightness adjustable
| YES
| YES
|
| | Polarized Condenser:NA.0.85,apture adjustable,up and down
| YES
| YES
|
Plug
| 220V/50Hz
| YES
| YES
|
according to your requirements
| | |
Package
| Foam+Carton
| YES
| YES
|
Please send inquiry>>
If you need any detail packing information, please contact us>>
If you have any question, please contact us>>
>>
