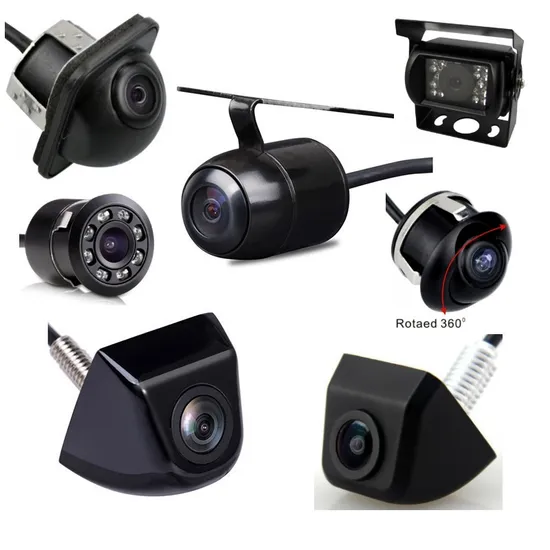

Factory Multifunction Universal Car Auto Camera Rear View Side Front View

US$3.60-9.60 20 Pieces (MOQ)

Basic Info.

Model NO.
Car cameras
Probe Number
4
Display Type
Without Screen
Interface
RCA
Function
Night Vision, Waterproof
Definition
480TV Lines
Chip
CMOS
Waterproof Grade
IP68
Image Sensor Available
PC7080/PC7440/PC3089/PC1058
Camera Degree
170 Degree
Waterproof
Yes
TV System
PAL/NTSC
Minimum Illumination
0.1lux
Pixels
628X582
Resolution
480 Tvl/600tvl Optional
Transport Package
50PCS/Carton, Carton Size 43*28*32cm
Specification
480TV lines CMOS in default
Trademark
CE
Origin
China, Shenzhen
HS Code
8525801390
Production Capacity
30000PCS/Month

Packaging & Delivery

Package Size
13.00cm * 8.00cm * 5.00cm
Package Gross Weight
0.210kg

Product Description

1) Camera size: 16.5mm/18.5mm/20mm/22mm/25mm/28mm diammeter optional
2) IR day/ Night Vision 480TV lines Car Camera suitable for front view/rear view
3) with image sensor PC7080 PC7440 480 TV lines CMOS in default
4) PAL/NTSC TV Systems optional.
5)Waterproof design, weather-resist.
6) Image sensor optional: PC3089 PC1058 700TV lines optional
7)Parking distance lines on&off switch optional
8) Mirror&non mirror image switch optional
Universal car cameras

Product Description
Item Name Night View Car Camera HD Rear/ Front View Camera
TV system NTSC PAL optional
Effective pixels 640*480
Electronic shutter 1/50-1/100.000sec, 1/60-100.000sec
Scanning system 2: 1 interface
Night vision Yes
Sync system Internet
Resolution 480TV lines
Lesn angle 170 degree
Sensor Area 5.78 X 4.19mm
Min Illumination 0.1 Lux
S/N ratio More than 48dB(AGC-OFF)
Video Color Colorful
Video Output 1.0Vp-p, 75 Omega
Image Device 1/4 inch color
Waterproof IP67
Power supply DC 12V
White Balance Auto
Electronic Shutter 1/60-1/10000 seconds
Current Consumption < =150mA
Current consumption 90mA Max
Operating temperature -20~75(ºC), RH 95% MAX
Storage temperature -40~85(ºC), RH 95% MAX
Color Black
Dimention 200*82*33mm
Gross weight About 285g
Warranty 24 months
Certificate CE, RoHS, FCC

Main features:
1, Universal car Rearview Backup Camera
2, 170 Degree wide viewing angle
3, Die cast Metal housing
4, Small and compact design
5, Completely waterproof housing
6, Metal anti-theft bracket
7, Simple installation for installers
8, Low light sensitivity fo 0.1 Lux
9, Reverse image
10, Color: Black
11, Requires a 12V DC power supply

Package:
1 X Color car rear view camera
1 X 1.5 Power supply cable
1 X 6m Video cable
1 X English user manual
2 X screws

Specifications for different image devices:
Car Rear View Camera
Chip
PC7080
1409
PC1058
MCCD
Optical format
1/4 inch
1/4 inch
1/3 inch
1/2 inch
Resolution
480TVL
800TVL
750TVL
650TVL
Effective pixels array
648*488
1024*720
960*576
768*582
Horizontal angle
100 deg.
120 deg.
120 deg.
130 deg.
Lens
2G2P
6G
2G3P
6G
Waterproof
IP67
Output format
PAL or NTSC
Connector
RCA/4PIN DIN optional
CE&FCC
Approved
Working Voltage
DC 12V
Working Tem. /Hum.
-20°C~70°C, RH. 95% MAX.
Storage Tem. /Hum.
-30°C~80°C, RH 95% MAX.
OEM/ODM
Accepted
