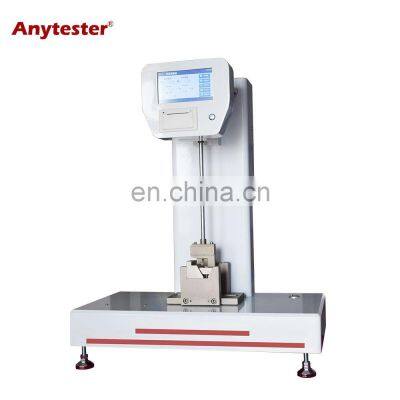

Product DescriptionProduct Application.AT421D Series Digital Charpy Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, fibre reinforced composite material, nylon, glass, ceramics, cast stone, asbestos board, electrical insulating material, etc. It is suitable for notched and unnotched specimen. STANDARDS ISO 179 GB/T 1043, 18743, 3808 JB/T 8762 JJG 145 Note: This Digital Charpy Impact Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us. SPECIFICATIONS FOR HY4252D DIGITAL IZOD IMPACT TESTER Model AT421DA AT421DB Impact velocity 2.9m/s 3.8m/s Impact energy (0.5J), 1J, 2J, 4J, 5J 7.5J, 15J, 25J, 50J Impact center distance 230mm 380mm Pendulum angle 150° 160° Radius of striking edge R=2±0.5mm R=2±0.5mm Radius of jaw R=1±0.1mm R=1±0.1mm Inclined angle of striking edge 30±l° 30±l° Energy display resolution 0.01J 0.01J Weight 60kg 70kg Power supply AC220V 50Hz AC220V 50Hz Dimensions 60Kg 70kgDetails & FeaturesTouch Screen Control> Ln arge LCD display > Touch screen control make the operate simple> Modularization desigmake after sale service easy Modularization Design> English and Chinese language changeable> Remote control for software update anytime> Historical date date query and print available> Test report can be output and store on PCHigh Quality Material> Building in mini printer> Reserved port for Stylus printer> Historical date can be printedHigh quality material> High quality stainless steel make the machine long life> Good machinery technology perform nice appearanceOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertificationsPacking & Delivery Packaging Size 85 (L) * 51 (W) * 94 (D) Weight 60Kg Packaging Details 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Payment Payment Term T/T EXW 50% T/T in advance, paid the balance before shipment FOB CFR(C&F) 50% T/T in advance, paid the balance against copy of B/L CIF L/C L/C amount above 50,000 usd, we can accept L/C at sight West Union Amount lower than 5000USD West Union Delivery Time 30~60 days after receiving payment for one containerContacting us ERIC QIN Website Mobile Phone +86 188 5510 5986 Whatsapp +86 188 5510 5986 Skype eric-qlk Wechat +86 188 5510 5986Related ProductsAT430C Melt Flow Index Tester AT422D Izod Impact Tester AT403 Sample Notcher
>>
