Chemical Metallurgy Kiln  for  Steam  Calcination

Product Description

CIC, having been started the producing of the pyroprocessing equipments since 1950s, is one of the largest designing and manufacturing enterprises for pyroprocessing equipment in China. The complete set of the pyroprocessing equipment CIC can provide includes the dry, semi-dry and wet processed cement rotary kiln, self-return soda steam calciner, metallurgy chemical kiln, environmental dryer and cooler, and etc, which are widely used in the industries of cement producing, metallurgy, chemical, environment protecting and etc.
CIC has a first-rate team dedicated to the pyroprocessing equipment developing, studying and testing, and the perfect experimenting and testing measures, excellent manufacturing equipment and technology for the pyroprocessing equipment. A complete system for the designing, manufacturing, installing and debugging service for pyroprocessing equipment has now been built up here at CIC.
Recently years, CIC has been learning from the world famous international companies, such as the Danish FLSmisth, German KHD Humboldt and Polysius, and etc, and cooperating with the domestic cement research and design institutes in Tianjin, Nanjing, Hefei and etc. With all these efforts, CIC has developed the series of new large dry-processing cement rotary kiln, which are matching for the 3000~5000t/d cement producing line.
The Supply Scope of the complete set includes: the Kiln Rear Sealing Device, Supporting Device, Shell, Driving Device, Supporting Device with Shaft Roller, Hot Kiln Hood, and Hydraulic System for Thrust Roller (without refractory Material). The Electronic Control S ystem is also available as per the customer's request.

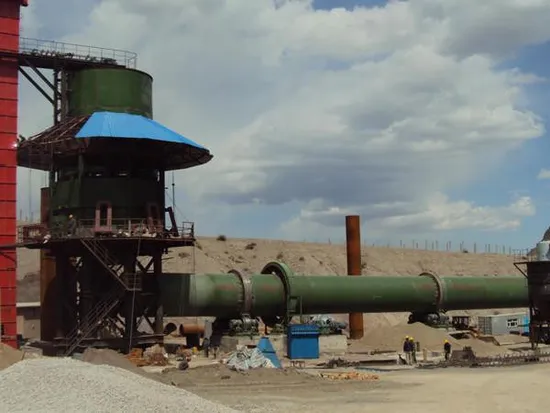

Chemical & Metallurgy Rotary Kiln
1. Application and Operating Principle
Chemical Rotary Kiln is one of the common types of the pyroprocessing equipments for chemical clinker roasting. As the most important pyroprocessing equipment for the roasting of the mineral, Chemical Rotary Kiln is widely used in the roasting of the high alumina bauxite ore in the refractory plant, the roasting of the clinker, aluminum hydroxide and carbon material in the aluminum factory, the magnetizing roasting of the lean iron ore in the steel and iron plants in metallurgy, the roasting of the mineral such as the chromium ore and etc in the chemical factories.
The Steam Calcinations Kiln for Sodium Bicarbonate with Inner Recycling of Soda, designed and manufactured by CIC, is the key equipment of decomposing the wet sodium bicarbonate sent by the filtering process in order to get soda, which is through the way of indirect heating by steam. This kind of calcinations kiln has greatly simplified the producing equipment. It extremely benefits for changing, expanding, or building the new plant, also with lower energy consumption and less pollution. The Steam Calcinations Kiln for Sodium Bicarbonate with Inner Recycling of Soda, designed & manufactured by our company, with the productive capacity of 800 tons per day φ3.2×32 meter, is the largest one of the size in China for now.
2. Characteristics
With the relatively simple structure, the convenient and reliable control of the production procedure, high running rate, and high quality of the products, the Chemical Rotary Kiln has the following characteristics:
1) Shell: made of the high quality carbon steel or alloy steel, by automatic welding.
Supporting Device: using the advanced spindle structure, with the automatic temperature measuring device and electronic heater unit, and flow supporting unit for choosing.
2) Shaft Roller Unit: with the type of the machinery shaft roller hydraulic thrust roller and for choosing, while the hydraulic thrust roller is equipped with the advanced hydraulic control system.
3) Driving Unit: equipped with a single or dual drive unit, the continuous current dynamo or variable-frequency and variable-speed motor, of reliable operating and efficient energy saving.
4) Kiln Seal Device: different types of the seal are designed to match the design of the chemical rotary kiln, and all types are with great sealing effect.
5) Low-speed driving device: equipped.
Technical Parameters of Steam Calcination Kiln for Sodium Bicarbonate with inner recycling of Soda

Specification	Capacity	Design Pressure(Mpa)		Design Temperature(ºC)		Work Pressure(Mpa)		Work Temperature(ºC)
m	t/d	Tube	Shell	Tube	Shell	Tube	Shell	Tube	Shell
φ2.5×27	400	3.53	Normal Pressure	270	200	3.2	Normal Pressure	238	200
φ2.8×27	520	3.53	Normal Pressure	270	200	3.2	Normal Pressure	238	200
φ3×30	660	3.53	Normal Pressure	270	200	3.2	Normal Pressure	238	200
φ3.2×32	800	3.53	Normal Pressure	270	200	3.2	Normal Pressure	238	200

Specification	Heat Exchange Area	Installation Inclination	Main Motor Power	Speed Rate	Main Drive	Slow Speed Drive	Net Wt.	Max Wt. With Filler	Product Features
m	M2	%	kw	r/min	r/min	r/min	kg	kg
φ2.5×27	≥2500	2	160	980	7	0.4	198000	250000	Light Soda Ash
φ2.8×27	≥3100	2	160	1480	6.32	0.3	228000	270000	Light Soda Ash
φ3×30	≥3600	2	220	1480	5.9	0.25	300800	350000	Light Soda Ash
φ3.2×32	≥4000	2	310	1480	5.47	0.26	350000	395000	Light Soda Ash

Main Parts:
Girth Gear
PInion Shaft
Pinion

---
