| US$475.00-955.00 | 500 Pieces (MOQ) |

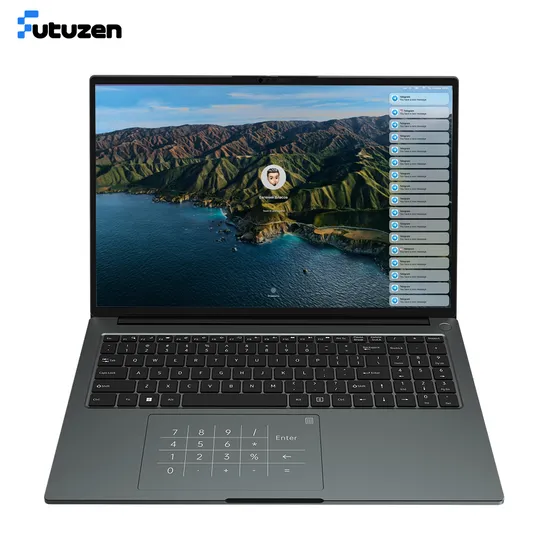

| W16220MS System Physical Standard Configuration | ||
| Structure | Form factor | Notebook |
| Color | Customizable | |
| Dimension | 356.8*244.55*18.1mm | |
| Material | AD metal,BC plastic | |
| Hinge | 180° | |
| Weight | TBD | |
| LCD | Size | 16" 16:10 |
| Resolution | 1920*1200 FHD IPS | |
| Refresh frequency | 60Hz | |
| Gamut | 45%NTSC | |
| Brightness | ≥250 cd/m² | |
| Touch panel | Type | NA (PCBA support) |
| I/O ports | MB IO(Left) | 1* Type-C Full function 3.2 Gen2(MB)(10Gbps) |
| 1*HDMI Type A 2.0 (MB) | ||
| 1* USB-A 3.2 gen1 (MB) (5Gbps) | ||
| 1* USB-A 3.2 gen1 (MB)(5Gbps) | ||
| 1* Type-C Full function 3.2 gen1 (MB)(5Gbps) | ||
| DB IO(Right) | 1*Security lock slot (Mini Saver) | |
| 1*RJ45 (DB) | ||
| 1* USB-A 2.0 (DB)(480Mbps) | ||
| 1*Φ3.5mm standard headphone jack (DB) | ||
| 1*SD card (DB) | ||
| 1*Camera+Mic physical power on/off switch (DB) | ||
| LED indicator | Power On/Off/Sleep Indicator | On with Wihte light Off with no light Sleep with breathing light |
| Battery/Charge Indicator | On with Orange light Full-charge White light Off with no light | |
| Webcam Indicator | On with White light Off with no light | |
| Camera Lock Indicator | On with White light Off with no light | |
| Caps Lock Indicator | On with White light Off with no light | |
| Num Lock Indicator | On with White light Off with no light | |
| Power button | Button | Seperated Power button key(On DB) |
| Keyboard | Backlit | w/ backlit |
| Matrix | US | |
| Others | Spill resistant with drain for drainage,Typical keyboard w/o removeable design | |
| Web camera | Front | Front 1080p(standard)+ Front 720p Infrared (IR)- Camera+Mic physical power on/off switch Camera shutter |
| Rear | N/A | |
| Windows Hello | Yes | |
| Touchpad | Interface type | I2C |
| Feature | Support Number button(PCBA Support) multi-touch support, gestures and scroll function | |
| Fingerprint | Location | On the Power button |
| Interfaces | SPI | |
| Windows Hello | Yes | |
| Others | Support one-click power on | |
| Audio | Speaker | Built-in 4Ω/2W speaker *2 |
| Mic | HD Audio, Built-in (dual) digital microphones | |
| Battery | Type | Lithium-ion polymer battery,fast charging |
| Capacity | Smart Battery,11.55V,6060mAh 70Wh | |
| Certification | CB,MSDS,UN38.3,Identification and Classification Report for Air Transport of Goods,Ocean Freight Transportation Appraisal Report | |
| Endurance | TBD | |
| System hardware configuration | ||
| CPU | Type | Meteor Lake H-series (code name MTL-H) (TDP45W) |
| Model | Intel® Core™ Ultra 7 155H,6P+8E+2LPE Core 22T, 3.8~4.8GHz, 28W | |
| GPU | Type | Intel® ARC™ Graphics 5 |
| RAM | Type | 0GB DDR5 onboard+1x16GB sodimm DDR5 |
| ROM | SSD | 512GB PCIE Gen4 - 2280 SSD |
| Sensor | G sensor | / |
| Hall sensor | Support | |
| TPM | Type | FTPM2.0&dTPM 2.0 |
| V-Pro | Model | N/A |
| RTC | RTC connector | with RTC battery |
| Wireless Network configuration | ||
| WIFI | Model | WIFI M.2 Socket 2230 E-KEY Intel®Wi-Fi 6 (802.11ax) + BT 5.2 (AX201) |
| LTE | M.2 slot | / |
| Bluetooth | Bluetooth version | 5.2 |
| Software Configuration | ||
| OS | System version | Windows 11 Home |
| Language | Support multi Language | |
| BIOS/EC | UI spec | Standard spec |
| Accessory | ||
| Power adapter | Standard Configuration | 100W 20V 5A Type-C deskptop type charger(Support PD fast charge),1.2M |
| Power cord | Standard Configuration | 1.0M |
