433MHz 10W 20W 40W 50W WiFi, Fpv or Drone RF High Power Amplifiers Wireless Signal Extender Sweep Signal Source

Product Description

Product Description

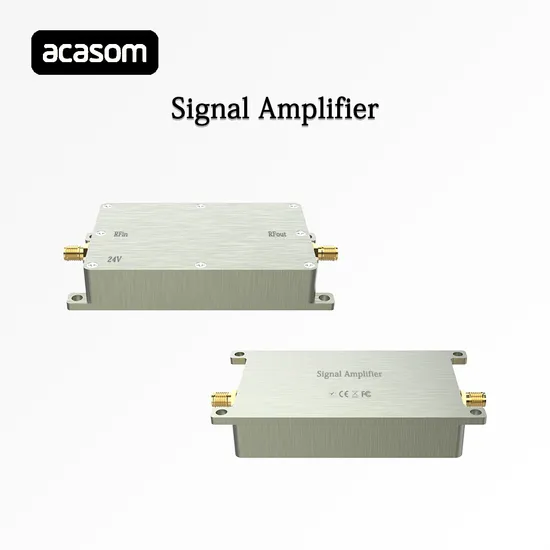

ACASOM 433MHz Unidirectional Amplifier FOR WiFi/ DRONE
Only the Tansmitting Channel (TX), NO RX
Frequency:410MHz-440MHz
RFOUT POWER1=47dBm(50W)
RFOUT POWER1=46dBm(40W)
RFOUT POWER2=43dBm(20W)
RFOUT POWER2=40dBm(10W)

ACASOM accept customizing the power you need!

Number	Items	Specifications
1	Frequency Range	410-440MHz
2	Operating Voltage	20-24V(customizable28-32V)
3	Gain(S21)	37dB(customizable 25-37dB)
4	Input Return Loss(S11)	-15dB
5	Flatness	±0.5dB
6	Output Power	47dBm
7	Current	3.5@28V, 46dBm
8	Efficiency	45%@46dBm
9	LED State	Red
10	Operating Temperature	-30ºC~85ºC
11	Storage Temperature	-40ºC~150ºC
12	Operating Humidity	<95%RH
13	RF Connector	Input:SMA-Female; Output:SMA-Female
14	DC port	15cm red/black wire
15	Shell Material	Aluminum
16	Shell Size	96*53*17mm
17	Net Weight	0.15Kg

ACASOM Signal Booster/Extender is a device that helps to enhance the range and strength of wireless signals in both the frequency bands. It works by amplifying the signals that are transmitted and received by wireless devices such as routers, smartphones, laptops, and tablets, thereby improving the signal strength and extending the coverage area.
Detailed Photos

NOTE:
1 24V /5A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.3 Antenna should be screwed first, then plug the power adapter, finally connect the device.
4 The output could reach 47dBm, when input power is10dBm or 11dBm (default gain is 37dB).

Service and process of order
Certificates and patents
Why choose us

ACASOM has been in the industry for 15 years and we have patents for more than 20 pieces. All the products are our self developed and we are willing to customize products for you. We always insist that technology and service are our core competence, we are ready and at your service.

Exhibition and invitation

FAQ
1 I do not know whether your product satisfy my need, how can i know more?
Answer: Please start an inquiry, we have sufficient experienced engineer and existing products for you. 2 Could i customize my products, like frequency? Answer: Yes and we will provide more information, if that is reasonable, we could provide solutions for you.
3 I want to know more details with the products like video and application, how could i manage that?
Answer: Just choose or contact any of our sale manager, we will be at your service.
4 If i can change some parts, such as switch power module to red and black wire line?
Answer: Off course. We can provide reasonable changes for you at any time.

---
