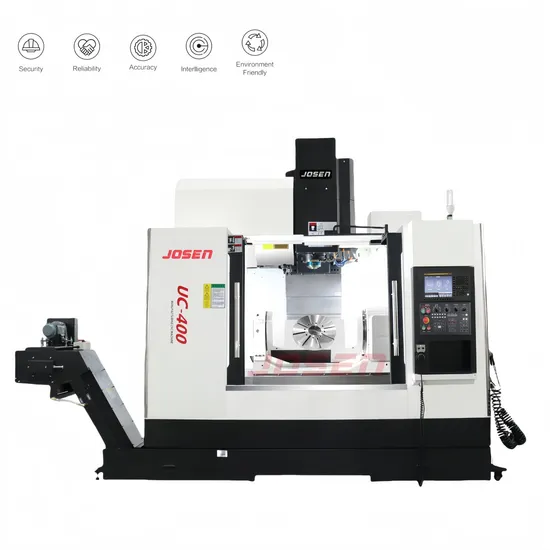

UC-400 High Precision Factory Price 5-Axis CNC Milling Machine Vertical Machining Center for Sale

Product Description

UC-400 High Precision Factory Price 5-axis CNC Milling Machine Vertical Machining Center for Sale
Product Description
Basic Info

Number	Name	Number	Name
1	FANUC 0I-MF CNC controller	10	Chip pan and water tank
2	Full cover shroud	11	Transformer
3	Automatic lubricant system	12	Spindle air curtain dust protection system
4	Ground bolts and spacers	13	Mechanical, electrical and operating instructions
5	Tool-box	14	Rigid tapping
6	Working light	15	Electrical box heat exchanger
7	Warning light	16	Machine cleaning water gun
8	M30 automatic power-off system	17	Three-axis slide telescopic shield
9	Portable chip blowing air gun	18	30-blade arm type tool magazine

Can be loaded into standard containers and will save at least $2000 in shipping costs. Product Specification

Description / Machine Model	Unit	UC-400
Travel
X-axis travel	mm	700
Y-axis travel	mm	620
Z-axis travel	mm	600
Distance from nose of spindle to table surface	mm	20-620
Working table
Working table size (X*Y)	mm	Φ400
Table T-slot size (width * number of slots * spacing)	mm	14H7/8*45°average
Max. loading capacity of working table	kg	255(Horizontal)200(Slanted)
Spindle
Spindle motor (continuous/30 minutes)	kw	11/15
Spindle speed	rpm	10-12,000
Spindle Cooling method		Spindle oil cooler
Spindle inner taper bore		BT40
Three axis
X/Y/Z axis motors	kw	3/3/3
Feed rate
Rapid feed rate (X/Y/Z)	mm/min	36,000/36,000/36,000
Fastest cutting feed rate	mm/min	1-10,000
Tool change system (optional)
Tool magazine capacity (standard/optional)	set	24/30
Tool magazine form		Arm type
Latin form		MAS-P40-1(45°)
Maximum tool diameter of adjacent tools		Ø80
Max. tool diameter of empty adjacent tool		Ø150
Maximum tool length	mm	300
Maximum tool weight	kg	8
Machine accuracy
Three-axis laser positioning accuracy (JIS6338 actual measurement method)
Positioning accuracy (full stroke)	mm	±0.005
Repeat positioning accuracy (full stroke)	mm	±0.003
System
Software		TCP4+1
Controller		FANUC 0I-MF
Oil pressure system
Water tank capacity	liter	250(front drainage)270 (rear drainage)
Pneumatic pressure requirements	kg/cm2	6
Electricity
Power Specifications		AC380±10%,3 phase,60Hz/50Hz
Electricity demand	KVA	30
Other
Chip removal method		Front crawler type
Floor space (L*W)	mm	4,220*2,680(front row)/2,780*3,150 (rear row)
Machine height (maximum)	mm	3070
Machine weight	T	7.2

Left elevation

Right elevation

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos

Company Profile

Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
