Bridge Single Head Automatic Polisher

US$9,000.00-12,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

QDM-900 1200 1800

Automation

Automatic

Precision

High Precision

Application

Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Marble, Coarse & Fine Grinder

Type for Grinding Machine

Disc Grinding Machine

Grinding Machine Type

Granite Polishing Machine

Grinding Method

Wet Grind

Certification

API, CCC, SONCAP, GOST, ISO, CE, Stone Machine

Condition

New

Main Motor Power

15kw

Voltage

220/380/415V

After Sales Service Provide

Engineer Available Service Machinery Overseas

Warranty

12 Months

Max. Processing Size

3000X1800X120mm

Max. Heads No.

1 Head

Water Consumption

4 M3/H

Approximate Weight

3 Tons

Transport Package

Seaworthy Wooden Case for Automatic Cutting Machin

Specification

6500X3100X2000mm

Trademark

Wanlong

Origin

China

HS Code

84642000

Production Capacity

5000sets Per Year

Product Description

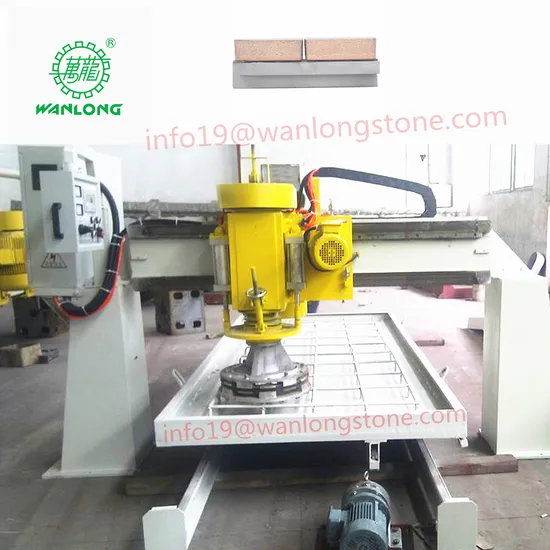

QDM900/1200/1800 Bridge Single Head Automatic Polishing Machine

Model		QDM-900	QDM-1200	QDM-1800
Main motor power	mm	15	15	15
R.P.M. of polishing head	r/min	560	560	560
Traverse feeding speed of polishing head	mm/min	0-5600	0-5600	0-5600
Lengthways feeding speed of polishing head	mm/min	0-4300	0-4300	0-4300
Supplied by user	Mpa	0.35-0.5	0.35-0.5	0.35-0.5
Required air source	m3/min	0.15-0.30	0.15-0.30	0.15-0.30
Production capacity	m2/h	2-2.5	2.5-3	3-3.5
Max. polishing size (LxWxH)	mm	3000x900x120	3000x1200x120	3000X1800X120
Water consumption	m3/h	4	4	4
Approximate weight	kg	2000	2500	3000
Overall dimensions (LxWxH)	mm	6500x2200x2000	6500x2500x2000	6500X3100X2000

Configurations:
1. SIEMENS main motor with stronger seats.
2. PANASONIC PLC and inverter.
3. Strong cast iron HT200.
4. Touch sensitive Panel Easy for worker to operate.
5. 3-3.5sqm per hour for medium hard granite.
6. 12 months warranty
