Universal Radial Drilling Press Machine with Mechanical Transmission

Product Description

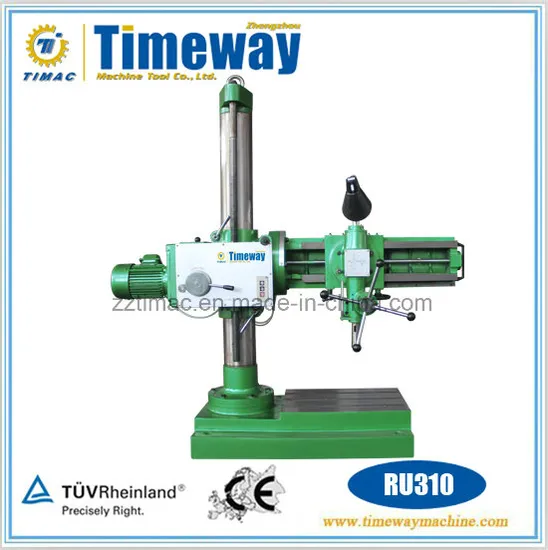

Mechanical-Type Single Column Radial Drilling Machine
RU310 RU208
Features:
Base, column, boom and gear head are made of premium high-quality cast.
Major design features include a column and a highly torsion-resistant boom.
The gears feature hardened and precision-ground chromenickel steel gears for smooth and low-noise operation.
Technical Parameter:

Specification	Unit	RU208	RU310
Max. drilling diameter	mm	25	32
Distance from spindle center to column surface	mm	390-870	390-870
Distance from spindle nose to worktable surface	mm	65-865	65-865
Spindle box horizontal travel	mm	500	500
Radial ram rotary angle	deg	360°	360°
Spindle taper	-	Morse No.3	Morse No.3
Spindle speed range and grades	rpm	100-565(4 steps)	173-960(4 steps)
Feed speed and grades	mm/r	0.1-4(4 steps)	-
Spindle travel	mm	135	120
Main motor power	kw	1.5	1.5
Net weight	kg	900	850
Floor area	mm	635x430	635x430
Worktable size	mm	-	-
Overall dimension	mm	1760x570x1900	1760x570x1900

Standard Configuration:
• Mechanical clamping for spindle head, radial arm and column
• Hardened and ground guideway & gears
• Halogen work light
• Coolant system
• Tool & tool box
• Operator manual in English
• 380V-50Hz-3Ph or as client's request.
Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
