Special China Universal Turning Center Horizontal Small Cutting Precision Engine Mini Bench CNC Lathe

Product Description

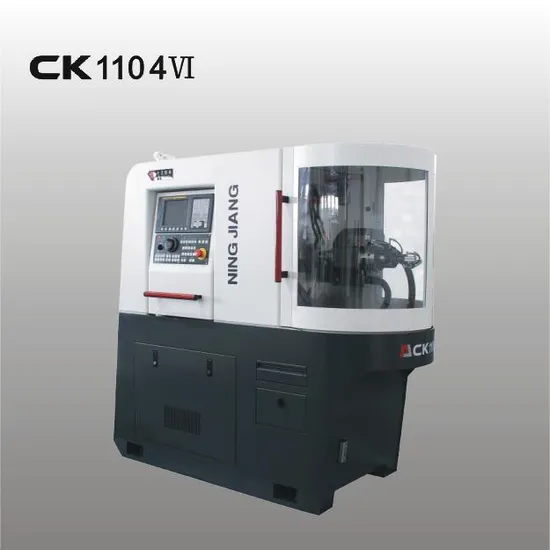

CK1104VI CNC slitting automatic lathe
Product Description

The machine is CNC slitting automatic lathe, specialized in precision machining of small parts. Adopt double channel NUMERICAL control system, eight axis and four linkage.
The machine tool uses rod material for the automatic cycle processing of continuous upper and lower material, which can complete the circle outside the car, front drilling, front tapping, front tapping, front boring, car thread, cutting groove, horizontal drilling, milling side, milling groove, radial tapping, cutting, back turning, back drilling, back boring, back tapping and other processes.
Spindle and secondary spindle are using FANUC built-in spindle motor, compact structure, high spindle speed, stable operation, low vibration, small noise, can make the processed parts to achieve a good surface roughness.
The machine tool can be configured with special features such as rolling tooth accessories, which can realize the primary forming processing of small analog gear.

The machine is equipped with feeding machine interface. After connecting with the feeding machine, it can realize automatic feeding of multi-bar materials.

Specification, parameters and accuracy indicators

Description	Unit	CK1104VI	Note
Max.bar.diameter	mm	Φ4
Max.cutting length	mm	30
Spindie rpm	r/min	16000
Number of tools	The	11
Main motor power	KW	075/1.1
Repeatability	mm	0.002
System/controlled axes		FANUC 0i-TF Plus/6 Axis
Rapid feed rate	m/min	20
Overall dimension	mm	1890*940*1750
Weight	KG	~1200

Detailed Photos

Company Profile

COMPANY PROFILE
Guangzhou Xinzhao Zhikong Precision Manufacturing Co., Ltd. is a professional precision lathe manufacturer and service provider, committed to small diameter shaft, pinhole parts processing solutions. KC series CAM CNC machine tools are the industry's first products developed and manufactured by the company, with a number of invention patents.
Guangzhou Xinzhao has advanced development and technical advantages in the field of probe and insert machine products, on-site tooling operations including axial and radial milling, drilling and tapping. In all kinds of Guangzhou Xinzhao CNC lathes have on-site processing applications.
Guangzhou Xinzhao is a responsible company with worldwide sales, systems developed in Taiwan and manufactured in China, known for providing matching support to customers, employees and the environment.
Our ultimate goal is to be altruistic and win-win, to become a professional partner to provide intelligent manufacturing solutions to serve the industry and positively impact the world.
FAQ

1.Who are you?
We are Guangzhou Xinzhao Zhikong Precision Manufacturing Co., Ltd.,which has two production bases in China.
We are a professional precision lathe manufacturer and service provider, committed to small diameter shaft, pinhole parts processing solutions.
KC series CAM CNC machine tools are the industry's first products developed and manufactured by our company, with a number of invention patents.
Welcome to visit our factory.
2.What's the delivery/lead time of your machines?
One month in the low season and three months in the high season
3.What's the acceptable payment terms?
We can accept payment by T/T
4.What about installation and commissioning?
This quotation does not include local installation and debugging. We offer professional online guidance.
5. How about the warranty?
The machine is guaranteed for 12 months from bill of lading date. Man-made damage can not be guaranteed.

---
