US$20,000.00-100,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
sj75/30 single screw extrruder
Computerized
Computerized
Certification
ISO9001:2008, SGS
After-sales Service
1 Year
Production Capacity
100 Sets
Product Description
PP pipe extrusion machine
pp pipe extrusion line
PE WATER GAS PIPE EXTRUSION
PE water supply and gas supply pipe extrusion line
Product Description
Application:
Through market combination and continuous research innovation, Midtech pleased to provide
------ Energy saving and ECO system (15% down),
------ Quality products(Bimetallic & PLC Intelligence),
------ Copper wing cooling unit (less 15% power consumption)
------ Reliable quality (vertical gearbox with thrust bearing)
extruder and whole set extrusion and production line

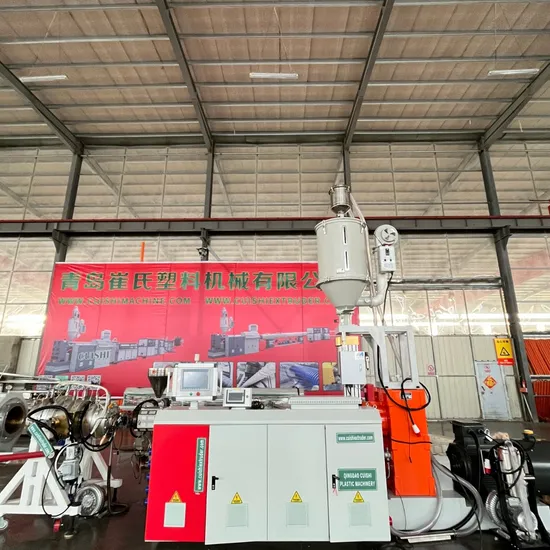

Plastic pipe machine workshop
Main parameter of PVC pipe production line extruder machine
| Extruder model | SJSZ-50/105 | SJSZ-55/110 | SJSZ-65/132 | SJSZ-80/156 | SJSZ-92/188 |
| Driving motor (kw) | 15 | 37 | 37 | 55 | 90 |
| Pipe diameter range(mm) | 16-40 | 20-110 | 50-200 | 200-400 | 400-630 |
| Water pump | 3kw | 4kw | 5.5kw | 5.5kw X 2pcs | 7.5kw X 2pcs |
| Vacuum pump | 2.2kw X 2pcs | 4kw | 4kw | 4kw X 2pcs | 7.5kw 5.5kw X 2pcs |
| Caliber Length(mm) | 5000 | 6000 | 6000 | 8000 | 6000, 3000 |
| Water cooling tank | No | No | 5000 | 6000 | 100000 |
| Hauling motor | 0.75kw 4pcs | 2.2kw | 3.7kw | 7.5kw | 18.5kw |
| Hauling belt | 4pcs | 2pcs | 2pcs | 4pcs | 6pcs |
| Cutting motor | 1.1kw 2pcs | 2.2kw | 3.7kw | 3.7kw | 3.7kw |
| Inverter brand | Delta | Delta | Delta | Delta | Delta |
| | | | | | |
Main parameter of PE pipe production line extruder machine
| Pipe Diameter | 16-63 | 32-125 | 75-315 | 110-450 | 315-630 | 315-800 |
| Extruder | 45/33 | 65/38 | 75/38 | 90/38 | 120/38 | 150/38 |
| Cavity | single strand | single strand | single strand | single strand | single strand | single strand |
| Downstream | cs63 | cs125 | cs250 | cs450 | cs630 | cs800 |
| Total power(kw) | 70 | 150 | 230 | 380 | 550 | 800 |
Product Paramenters
Model
| Pipe range(mm)
| Extruder
| Max.Output(kg/h)
| Total power(kw)
|
PE63
| 16-63
| SJ65/33
| 120-180
| 110
|
PE110
| 16-110
| SJ65/33
| 150-200
| 130
|
PE160
| 50-160
| SJ75/33
| 150-220
| 150
|
PE250
| 75-250
| SJ75/33
| 280-350
| 280
|
PE315
| 110-315
| SJ90/33
| 250-350
| 350
|
PE450
| 160-450
| SJ90/33
| 350-450
| 400
|
PE630
| 315-630
| SJ120/33
| 550-850
| 550
|
HDPE/PP/PPR pipe making machine
General description
1. Capacity: single screw extruder, suitable to process PE/PPR resin with high capacity, max 1000kg/h.
2. Diameter: from 16 to 800mm.
3. Extruder adopts big L/D and multi mixing structure, which is more suitable for the PE PP PPR low temperature extrusion production.
4. Specially-designed spiral moulds for PE PP PPR pipes with marking line, with inside oil controlling temperature system.
5. Beautiful and practical stainless steel body for the vacuum calibration and spray cooling system, unique multi-section vacuum system ensures the stable sizing and cooling for pipes with marking line; special spray cooling system improves the cooling efficiency ; special water position, water temperature system make the machine more intelligent.
6. Hauling-off unit adopts particular pedrail structure, which is easy and convenient for operation; pedrail clamping uses mechanical and pneumatic combining system, which is more reliable.
7. Cutting system adopts saw blades and planetary cutting means; sumping uses hydraulic system , which ensures the smooth cross section; equipped with dust-collecting unit, which ensures the clean working environment.
Features & Advantages: The Large Diameter HDPE/MDPE Pipe Extrusion Line research & developed by Cuishi Machinery Co., features of unique structure, easily control, highly automation and stable performance. Pipes produced by this machine has the moderate rigidity, strength, as well as good flexibility, anti-rot, anti-stress split, and favorable hot melting, make this large diameter pipe considered as the prefer product for water and gas transportation system in cities.
Its products are widely used in fields of colliery slurry transportation, borehole high-pressure water supply, crude oil and natural gas transportation, water supply and drainage of daily life, power and chemical plants, and urban construction, etc.
Features of PE pipe making machine
PE pipe production line adopts high efficiency extruder , screw with barrier and mixing die structure, new type open barrel, which can insure good plasticized effects.
1. Extruder: High efficiency single-screw, it has high rotation speed, high output and plasticization capability.
2. Extrusion mould: Extrusion regularly, easy operation and adjustment.
3. Vacuum Calibration Tank & Spraying Cooling Tank: Tank body is made of stainless steel.
4. Haul-off Machine: According to different diameters, there are 2-pedrail, 3-pedrail, 4-pedrail, 6-pedrail, 8-pedrail, to satisfy the different requirement of production.
5. Cutting Machine: Disk-saw Cutting, Planetary Cutting, Non-scrap Cutting for different requirement.
6. Stacking Rack: Automatic overturning or roller stacking, or Double-station Winding machine for small pipe.
7. Electric control system: Electrical components are all famous brand, stable running and easy operation
The main technique parameter
| Model | SJ65/30 | SJ75/33 | SJ90/30 | SJ90/33 | SJ120/30 |
| Pipe diameter | 16-63mm | 75-110mm | 110-250mm | 160-450mm | 450-800mm |
| Marking line | SJ30 | SJ30 | SJ30 | SJ45 | SJ45 |
| Output capacity | 100kg/h | 200kg/h | 200-250kg/h | 250-400kg/h | 500-700kg/h |
our customer and exbition pictures
>>
