US$65,000.00-72,000.00
|
1 SET
(MOQ)
|
Basic Info.
Species
Die Cutting and Creasing Machine
Placing Form of Template
Horizontal
Die Cutting Tool
Steel Plate
Computerized
Computerized
Automatic Grade
Automatic
Material Size
120-600mm(L), 120-550mm(W)
Secant Length Range
15mm-120mm
Speed
100PCS/Min (300X300mm)
Grooving Angle
90-130 Degree
Material Thickness
1.5-3.5mm
Grooving Line Accuracy
+-0.15mm
Secant Part
Controlled by PLC
Grooving Line of 1st Step
8 Lines
Grooving Line of 2ND Step
4 Lines
Transport Package
Wooden Case
Packaging & Delivery
Package Size
505.00cm * 605.00cm * 175.00cm
Package Gross Weight
4600.000kg
Product Description
Description of machine: |

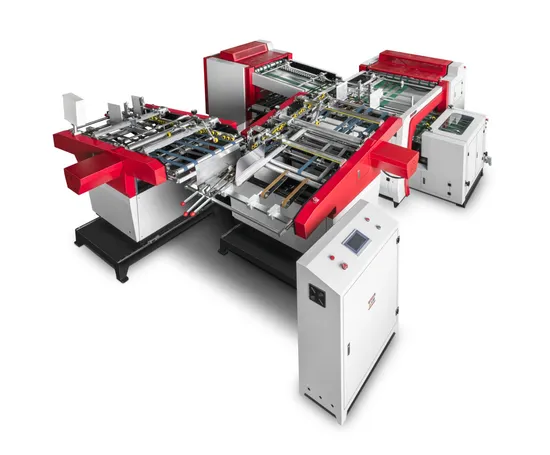

KLQ-600G it is Multi function: From 4 corner cutting to Bi-directional grooving in one time to get the final product. If you do not need the Corner cutting function, you can close it and remove this cutting part, and only use the grooving part to make V shape for 2 direction. Help the user to produce the hardcover product, case maker, different kinds of box, etc
|
Technical Parameters:
Model: | KLQ-600G |
Material size: | Length:120-600mm,width:120-550mm |
Min Board Cutting size | 15mm-120mm |
Working grooving Speed: | 100pcs/min(material size 300x300mm) |
Working Corner Speed | 60pcs/min(material size 300x300mm) |
Grooving line accuracy | ±0.15mm |
Grooving angle | 90º-130ºadjustable |
Numbers of knife holder | first two rows of knives, second one row of knives |
Max grooving lines of 1 st step | 8 grooving lines |
Max grooving lines of 2 nd step | 4 grooving lines |
Secant overhead length | ≤2mm |
Feeding type | Belt feeding |
Power | 6.0 KW |
| |
Machine details
Belt automatic feeeding
Automatic correction
guider system
Adjustable angle type
FAQ
1.What is Saili company machine warranty?----1 year including spares ( spares that are not damaged by humans consumables are not included)
2.Does your machine with CE certificate?----Yes.We have CE ,ISO9001 .
3.What is the production time while placing order?---- Within 7-30 workdays.
4.Do you have stock product to sell?----Normally we do,it depends on which models you inquired .
5.Can Saili company handle shipping for customers?----Yes.(Please provide us your requested sea port and we can check the shipping charge from logistic company and arrange shipping for you.)
6.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case,all are confirm to export packing standard.
If you have any inquiry, please don't hesitate to contact us. We will reply you at the first time as we can.
>>
