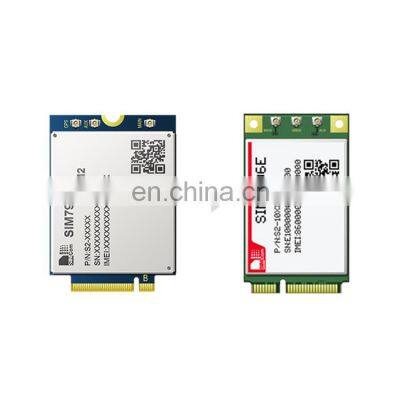

Simcom SIM7906E-M2 SIM7906E Multi-Band LTE CAT6 LTE-FDD/LTE-TDD/HSPA+ Module

Product Description

Product Description
DescriptionSIM7906E-M2• The SIM7906E-M2 is Multi-Band LTE-FDD/LTE-TDD/HSPA+ module solution in a M.2 type which supports LTE CAT6 up to 300Mbps data transfer.• It has strong extension capability with rich interfaces including UART, USB3.0, GPIO etc. The module provides much flexibility and ease of integration for customer's application.• The package of SIM7906E-M2 is M.2,TYPE 3042-S3-B. AT commands of SIM7906E-M2 are mostly compatible with SIM7500/SIM7600 Series modules. This also minmize the investments of customers, and enables a short time-tomarket.• It is designed for applications that need high throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for many applications.Product advantages• Standard M.2 interface.• High throughput data communication.• The AT commands of SIM7906E-M2 are mostly compatible with SIM7500/SIM7600 Series modules.General Features• Supply voltage range: 3.135V~ 4.4V, Typ: 3.7V• Control Via AT Commands• Operation temperature: -30℃ to +70℃• Dimensions: 42.0*30.0*2.3mm• Weight: 6.1g• LTE-TDD/LTE-FDD/WCDMA• Support DL 2XCA• GNSS (GPS,GLONASS and BeiDou)Data• Uplink up to 50Mbps• Downlink up to 300MbpsOther Features• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10• USB Driver for Linux /Android• RIL supporting for Android 2.3/4.0/5.0/6.0/7.0• MBIM to Win8• Firmware update via USB• TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/DNS• SSL3.0/TLS1.0/TLS1.2• FOTAInterfaces• USB3.0 x1 (high-speed)• USB2.0 x1 (high-speed)• UART x1 (4-wire UART )• SIM card x1 (1.8V and 3V)• PCIE x1• PCM x1• I2C x1• GPIO x1• Antenna x3FrequencyLTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32LTE-TDD: B38/B40/B41DL2XCA: B1+B1/B5/B8/B20/B28;B3+B3/B5/B7/B8/B20/B28;B7+B5/B7/B8/B20/B28;B20+B32;B38+B38;B40+B40;B41+B41;(Note:B32 is only for secondary component carrier)WCDMA: B1/B3/B5/B8Why Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC

---
