Product description：
Item No.
| CM3□-05
| CM3□-06
| CM3□-08
|
Fluid
| Air
|
Operation type
| External control
|
Pressure range
| 0-1.0 Mpa
|
Proof pressure
| 1.5Mpa
|
Ambient and fluid temperature
| -20 to 70℃
|
Valve type
| 3 port 2 position
|
Port size
| M5*0.8
| 1/8”
| 1/4”
|
Orifize size
| 2.0mm2
| 2.5mm2
| 15.0mm2
|
Cv value
| 0.11
| 0.14
| 0.84
|
Feature

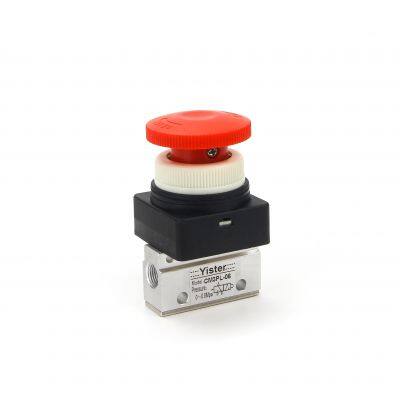

Airtac replacement CM3 manual mechanical valves are 3 way valves and are available with M5 ports 1/8 ports, or 1/4 ports.
A variety of manual and mechanical operators allow the CM3 series to be used as limit valves or to manually control circuit operation.
The non-threaded exhaust port allows the CM3 valves to be very compact in size. In addition to the wide range of manual actuators including large shrouded palm buttons.
FAQ
1.Q: why should you buy from us not from other suppliers?
A:We are the source manufacturer, and no dealers earn the price difference. All products have passed the strict pressure test and passed the packaging and delivery.
2.Q: what services can we provide?
A: After full payment, we place an order for production and deliver the goods within the agreed delivery time
Accepted Payment Currency:dollar
Accepted Payment Type: T/T
Language Spoken:English
3.Q.Whats your packing
A:Transparent plastic bag + white small box + neutral carton + pallet
Company information：
Yister Electric Co., Ltd. specialized in manufacturing pneumatic products. The company adopts international advanced production technology and scientific management methods, and all products realize computer-aided design and production management. The key components are imported from Europe and the United States. The main performance indicators of the products have reached the international advanced level.
The company adheres to the tenet of "reputation first, customer first", and earnestly fulfills the promise of "reliable quality, timely delivery, reasonable price, and excellent service" to provide customers with 100% qualified products.
Today’s quality, tomorrow’s market, we will serve every customer with 100% sincerity.
>>
