3WT8101-5AV34-5AF1

Product Description

Product Description
product

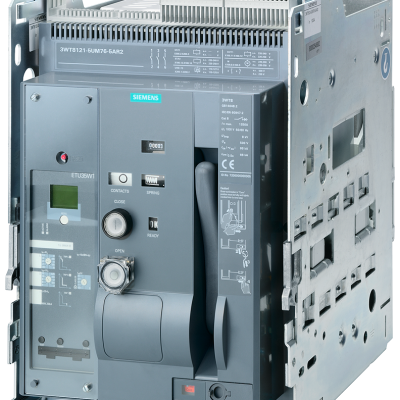

Drawer type circuit breaker 3 pole, size 1 In=1000A, maximum 500V, AC 50/60Hz Icu=66kA, 500V with mechanical reclosslocking device with trip signal switch with trip indicator with drawer type frame rated instantaneous current intensity ICW 66kA/S, 3-pole overcurrent release ETU35WT LSI setting range according to BG with display manual operation mechanism with memory with mechanical activation tape 1st auxiliary release Undervoltage release "RC" F8 220... 240V AC with delay tape 2nd auxiliary release "F" shunt release, F2 220... 240V AC, 220... 250V DC Depending on switch position Auxiliary current switch 2 NO + 2NC with locking device with safety lock 3SB1 (alternative close button) Standard locking Digital CES products 2-piece safety baffle with door seal frame
Product model
3WT8101-5AV34-5AF1
AL
N
ECCN
N
Country of origin
China
Life cycle
P.M300

---
