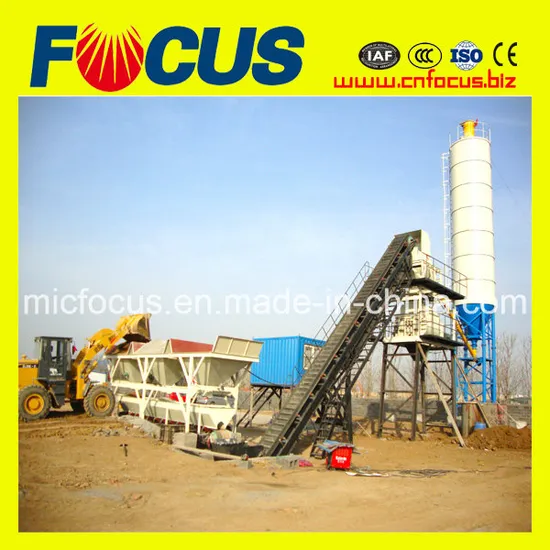

Construction Machinery! 60m3/H Concrete Mixing Plant with Belt Conveyor

Product Description

Sizes of FOCUS Concrete Mixing Plant:
Hoist Bucket Type: HZS25, HZS35, HZS50, HZS75Belt Conveyor Type: HZS60, HZS90, HZS120, HZS180
The main characteristic of HZS60 concrete mixing plant is:
1. It adopts knock down structure and blocking. It is combine concrete batching plant mode.
2. The machine adopts JS1000 concrete mixer, it has good concrete mixing quality and high efficiency.
3. The batching machine is measuring well and high produce efficiency.
4. The forced water supply system of concrete batching plant spray equably and has washing function for the concrete mixing system.

model	HZS60	HZS90	HZS120	HZS180	HZS240
Theoretical output(m ³ /h)	60	90	120	180	240
Mixer model	JS1000	JS1500	JS2000	JS3000	JS4000
Output per batch(m ³ )	1	1.5	2	3	4
Aggregate batcher	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400
Total power(KW)	110	145	160	205	340
Aggregate weighing accuracy(%)	( 0-3000 ) kg ±2%	( 0-4000 ) kg ±2%	( 0-4500 ) kg ±2%	( 0-4500 ) kg ±2%	( 0-6000 ) kg ±2%
cement weighing accuracy(%)	( 0-600 ) kg ±1%	( 0-1000 ) kg ±1%	( 0-1200 ) kg ±1%	( 0-1800 ) kg ±1%	( 0-2400 ) kg ±1%
water weighing accuracy(%)	( 0-400 ) kg ±1%	( 0-400 ) kg ±1%	( 0-600 ) kg ±1%	( 0-800 ) kg ±1%	( 0-1000 ) kg ±1%
fly ash weighing accuracy(%)	( 0-400 ) kg ±1%	( 0-400 ) kg ±1%	( 0-600 ) kg ±1%	( 0-800 ) kg ±1%	( 0-700 ) kg ±1%
additive weighing accuracy(%)	( 0-40 ) kg ±1%	( 0-40 ) kg ±1%	( 0-50 ) kg ±1%	( 0-50 ) kg ±1%	( 0-120 ) kg ±1%
Discharge height(m)	3.8-4.2
Max. aggregate dia.(mm)	80-100
Cement silo and screw conveyor	On request
Total weight (ton)	46	60	71	87	112
Overall dimension(LxWxH)(m)	33.8x14.8x19.4	38x16x19.4	44x18x19.4	58.5x23.5x22	60x25x22

---
