Product Details
Product Description
Product Description
Industry-specific attributesStandard
ASTM B338, ASTM B337,ASTM B338,ASTM B861
Other attributesPlace of Origin
Shaanxi
Brand Name
jimiyun
Model Number
titanium tube/pipe
Material
GR1 Gr2 titanium
Outer Diameter
≤114mm
Length
≤6000mm
Application
Industrial
Technique
Seamless
Grade
Gr2
Wall Thickness
≥0.1mm
Inside Diameter
≥1mm
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Product Name
ASTM B363 Gr2 titanium square tube
Type
Seamless/Welded
Condition
Annealed
Material
GR1,GR2,GR5,GR7,GR9,GR12
Surface
Polished,Pickling, Sandblasting
Standard
ASTM and Other related standards
Shape
Round.Square.Rectangle.Flat
Test
Flattening test, Flaring test, Nondestructive test
Advantage
High Strength and Excellent Corrosion Resistance
Certificates
Good resistance to effect of heat and low temperature
Packaging and deliverySelling Units:
Single item
Single package size:
30X15X10 cm
Single gross weight:
1.500 kg
Product Overview

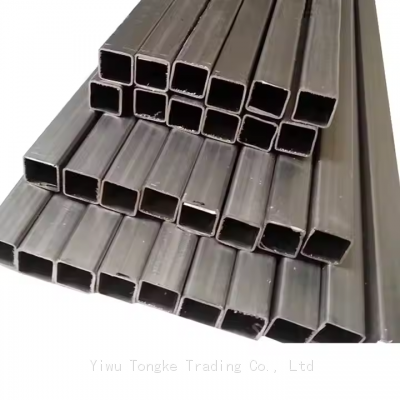

Titanium square tube
What is Titanium square pipe?Titanium square pipe, is a name for square pipe and rectangular pipe, that is, the side length is equal and not equal titanium pipe.It is made of titanium through technological processing.In general, titanium is unpacked, flattened, crimped, welded into a round tube, which is rolled into a square tube and then cut to the required length.Square tubes can be made into straight seam square tubes and seamless square tubes. When the temperature is not higher than 540℃, the oxide film of the titanium square tube will not become thick. However, at higher heat treatment temperature, the oxidation rate of the oxide film will accelerate, and the inner diffusion layer of the oxide film will become a layer of pollution.Oxygen contamination layer has a higher brittleness ratio, which leads to cracks and damage on the surface of parts.Removal of oxygen pollution layer includes mechanical processing, pickling, chemical grinding and other methods.During heat treatment, the heating time should be shortened as far as possible under the premise of protective heat treatment.It can also be carried out in vacuum furnaces or inert gas furnaces. Pollution caused by heating of titanium square pipe fittings in air furnaces should be avoided or appropriately reduced.
Titanium Tubes / Titanium Pipes.
The density of titanium is 4.506-4.516g/cm^3, melting point is 1668, boiling point is 3535. Therefore Titanium have low weight, excellent high strength and nonmagnetic festures, low density, excellent corrosion resistance features, high specificate strength and high temperature resistance features, so it is widely used in chemical industry field, medical field, electronics manufacture, mechanical parts field, automobile industry, and aerospace field, etc.
Seamless titanium tube process :
Titanium sponge—Compacting electrodes—melting—Forge—Bar billets—Extruding—Rolled—Straightening—Seamless tube
Welded titanium tube process:
Titanium sponge—Compacting electrodes—melting—Forge—Plate billets—Hot rolled—Cold rolled—Titanium scrap—Welded—Welded tube
Product name
| Titanium square pipe
|
Standard
| ASTM B861，ASTM B338,ASME SB861，ASME SB338
|
Material
| Pure titanium/Titanium alloy
|
Grade
| Gr1，Gr2，Gr5，Gr7，Gr9，Gr10，Gr12
|
Feature
| Fine Corrosion Resistance/Light
|
Application
| Industrial, Heating Exchanging, Condenser, Medical, Chemical, Aerospace, Oil, Sports, Bike etc.
|
Surface
| Pickling，Polished
|
Packaging
| Ply-wooden case, carton box
|
Shape
| Round/Square/Rectangle
|
Supply Ability
| 500 Ton/Tons per Month
|
Titanium pipe /titanium tube Chemical composition
Dimension and Tolerance of titanium tube:
Outside diameter, in.(mm)
| Diameter tolerance, in.(mm)
| Permissible variations , wall thinckness, t, % in.(mm)
|
±0.004( ± 0.012)
| ±10
|
1-1½(25.4-38.1)
| ±0.005( ±0.127 )
| ±10
|
1½-2(38.1-50.8)
| ±0.006( ± 0.152)
| ±10
|
2-2½(50.8-63.5)
| ±0.007( ± 0.178)
| ±10
|
2½-3½(63.5-88.9)
| ±0.010( ± 0.254)
| ±10
|
Product packaging
>>
