US$1.05-3.78
|
6,000 Square Meters
(MOQ)
|
Basic Info.
Product
PVC Stripe Fabric
Features
Tear-Resistant, Waterproof
Transport Package
Roll Packing with Craft Paper or Custom Request
Specification
As per request
Production Capacity
200000 Square Meters/Day
Product Description
Product Description

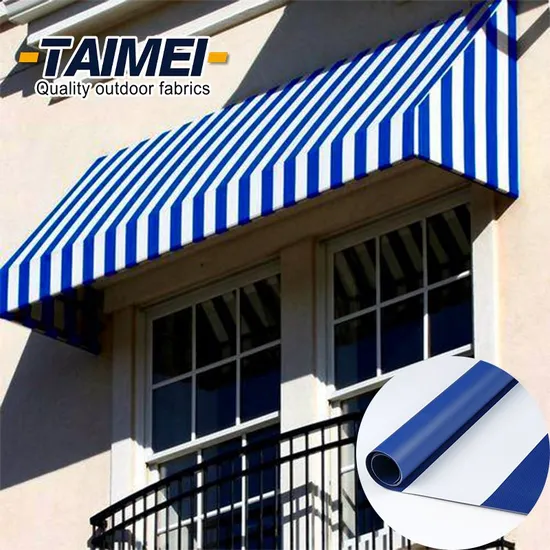

PVC Printed Stripe Fabric Fabricated from heavy duty 1000D High Tenacity Polyester fabric coated on both side with UV stabilized PVC. It is the most heavy-duty solution for 100 % waterproof outdoor application.
EXTRA STRONG 1000D X 1000D plain weaving base fabric offers bigger tensile and tear strength
EASY CLEANING Both-side acrylic lacquering saves your time of maintaining
Flame Retardant Low flammability minimizes the risk of fire
Application
Specifications
| Mechanical properties | Breaking strength Warp | 4000 N/5cm | ISO 1421/1 : 2016 |
| Breaking strength Weft | 4000 N/5cm | ISO 1421/1 : 2016 |
| Tear strength Warp | 600 N | DIN 53363 : 2003 |
| Tear strength Weft | 500 N | DIN 53363 : 2003 |
| Adhesion | 120 N/5cm | DIN 53363 : 2003 |
| Physical properties | Temperature resistance | -40/+70 °C | EN 1876/1 : 1998 |
| Light fastness (Except white and (half-)transparent) | 7-8 | ISO 105 B02 : 2014 |
| Fire behaviour (internal testing) | M2 | NF P 92-507:2004 |
| Reaction to fire | B-s2,d0 | EN 13501-1 + A1 : 2009 |
| Fire behaviour (internal testing) | B1 | DIN 4102 : 1998 |
Other PVC Product
Our Advantages
Company Profile
Professional OEM Manufacturer of Industrial Textile for 15 years.
TAIMEI Group is a ISO9001 certificated supplier of woven fabric and coating fabric, extruded films and sun shade covers. We headquartered in Qingdao, is responsible for marketing and R&D, while manufacturers in Weihai, Qingdao, Binzhou and Tai'An cities, handling production. With 15+ years of group experience in manufacturing, our production teams have 20+ years of experience in the production of a different kind of fabric, 380+ customers in 60+ countries worldwide, and for a variety of markets, applications and end-users.
In order to provide more professional fabric and finished products to our clients, we split our business to 4 divisions: Woven Division, Geosynthesis Division, Shade Fabric Division, and Tarpaulin Division. To provide many different fabric for different application.
>>
