Asenware Fire Alarm Manufacturers Conventional Fire Alarm System Control Panel

Product Description

Hot Sale 1-32 Zone Conventional Fire Alarm and Detection Panel With GSM Module Function

Product Description Features Of AW-CFP2166 1-32 Zone Conventional Fire Alarm and Detection Panel:
1. AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard.
2. It is modularized design, the panel can extend from 1 zone to 32 zones easily.
3. It has 2 level control mode by a lock,
4. It has FIRE and FAULT signal output.
5. It has 2 general sounders output.
6. Each zone has 1 circuit detector input.
7. Each zone can be disabled by a button.
8. It has a RESET button to reset the panel.
9. It has SILENCE button to stop BUZZER and SOUNDERS.
10. It has EVACUATE button to start a manual fire alarm immediately.
11. It has battery low protection function when battery voltage lower than 21VDC, the battery will be cut off automatically until the mains power is on.
12. It has an optional GSM module for fire alarm by SMS.
13. It is economic, user-friendly and easy maintenance.
Specification Of AW-CFP2166 1-32 Zone Conventional Fire Alarm and Detection Panel:

ITEM	1 Zone panel	2 Zone panel	4-8 Zone panel	4-32 Zone panel
Model No.	AW-CFP2166-01	AW-CFP2166-02	AW-CFP2166-04-16	AW-CFP2166-04-32
Power specification
Mains supply voltage	110VAC or 240VAC
Internal power supply	27.2VDC
Total output current limited	500mA @ 240VAC	500mA @ 240VAC	3A @ 240VAC	3A @ 240VAC
Batteries (Default Configuration)	12V2AH*2=24VDC in Total
End of Line device	6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold)
End of line resistor value	6.8k Ω,5% tolerance, 0.25W (colour code-blue,grey,red,gold)
Size and weight
Dimensions(mm)	272*200*70mm	320*231*90mm	395X502X124	362X565X124
Weight (without batteries)	4kg	5kg	7kg	8kg
Weight (with batteries)	5.8kg	6.8kg	9.6kg	12.5kg

Model	Conventional Fire Alarm Control Panel AW-CFP2166 (1-32 Zones)
Matched Detector&Accessories	Conventional Smoke Detector/Heat Detector/Manual Call Point Fire alarm bell/Strobe horn/Flashlight
Working Environment	industrial and civil buildings restaurants, hotels, teaching buildings, office buildings, computer rooms, communication machine rooms,
Benefits	wiring your building into different zones, economical

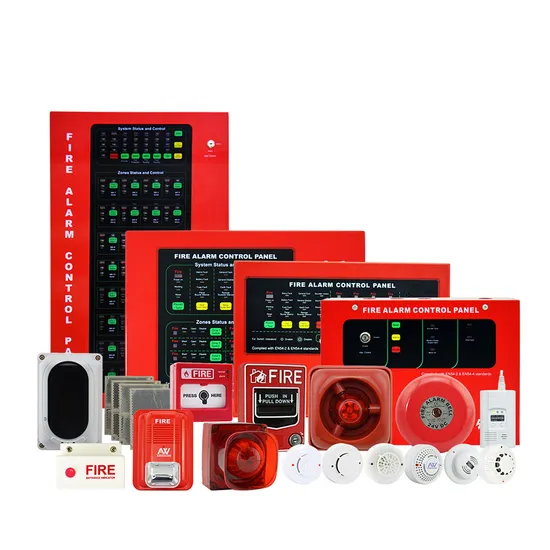

1-32 Zone Conventional Fire Alarm and Detection Panel and Accessories Photo Details:


(1 Zone Conventional Fire Alarm Control Panel)

(2 Zone Conventional Fire Alarm Control Panel)

(4-8 Zone Conventional Fire Alarm Control Panel)

(12-32 Zone Conventional Fire Alarm Control Panel)

1-32 Zone Conventional Fire Alarm and Detection Panel Accessories:
1.AW-CSD411-2/4W: Conventional photoelectric smoke detector
2.AW-CSD501-2/4W: Conventional photoelectric smoke detector
3. AW-CSD311: Conventional photoelectric smoke detector
4. AW-CSH202: Conventional smoke and heat combined detector
5. AW-CTD805: Conventional heat detector
6. AW-SSD601: Independent smoke detector
7. AW-SSD701: Independent smoke detector
8. AW-FD602-UV: UV flame detector
9. AW-CGD2166: Conventional gas detector
...
Packaging & Shipping Packing: Regular packing or customized packing
Shipping:DHL,UPS,EMS,TNT,FedEx Express,etc
Our Services 1.Sample oder is welcomed to test the quality.
2.OEM,ODM service
3.One year warranty and warm afterservice
4.Welcome visit our factory.
Company Information Shenzhen Asenware Test And Control Technology Co., Ltd was set up in 2005.Our headquarters is in London of UK. Now Asenware is an international group company in BMS and NDT industries.

We are a technology-oriented company that devotes to NDT(Non-Destructive Test) and BMS(Building Management System) industries.

We have two factories: one factory is in Shenzhen city for BMS products, and the other is in Dandong city for NDT X-ray products.
We have an experienced R&D team to design special electric products for test and control usage.
We have been striving to provide customers with satisfying service throughout the whole sales process.

---
