US$13,500.00-288,500.00
|
1 Set
(MOQ)
|
Basic Info.
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Computerized
Computerized
Certification
ISO9001:2008
Marketing Type
Hot Product
Core Components
Motor, PLC, Engine
Applicable Industry
Manufacturing Plant
Transport Package
at Seller′s Option
Specification
1200kn to 17000kn
Production Capacity
20sets/Month
Packaging & Delivery
Package Size
600.00cm * 155.00cm * 220.00cm
Package Gross Weight
8600.000kg
Product Description
Product Description

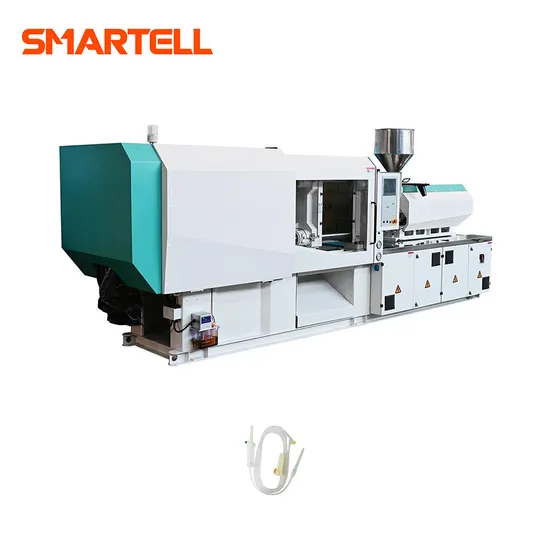

Injection Molding Machine in China
Consist of plasticizing system, injection system, the clamping system and transmission system of plastic injection molding equipment. Our company use die casting technologies applied to injection molding machines for many years.
In mechanical, hydraulic, electric control, etc for comprehensive improvement, perfect combination of dynamic pressure casting and speed.
Advantage:
1. Clamping Unit
Reliable 5-pint twin-toggle locking mechanism; Platens are designed under Finite Element Analysis; High speed clamping is stable while low pressure protection is accurate; Automatic lubrication system; Oil shortage alarm; Ejector stroke precisely controlled by transducer; Plenty of ejector modes for you to choose.
2. Injection Unit
Double-cylinder balance injection system; Shot weight is precisely controlled by transducer;
Using hydraulic motor to carry out variable speed.
3. Hydraulic Unit
Domestic high-tech divided hydraulic system; Hydraulic safety device; Imported high quality
hydraulic components are applied.
4. Electric Unit
Special controller for plastic injection molding machine; All the main components are imported from famous company, for example: TE(France), Gefran(Italy),etc.
Product Parameters
| ITEM/ MODEL | UNIT | SMT-1016 168T | SMT-1020 208T | SMT-1025 258T | SMT-1028 288T |
| Screw Diameter | mm | 40 | 45 | 48 | 45 | 50 | 55 | 55 | 60 | 65 | 60 | 65 | 67 |
| Screw L/D Ratio | L/D | 22.5 | 20.3 | 19 | 23.1 | 20.6 | 18.7 | 21.5 | 19.7 | 18.2 | 21.7 | 20 | 19.4 |
| Clamping Force | KN | 1680 | 2080 | 2580 | 2880 |
| Opening Stroke | mm | 420 | 475 | 545 | 610 |
| Hydraulic Ejection | KN | 45 | 62 | 62 | 70 |
| Ejector Stroke | mm | 140 | 165 | 165 | 165 |
| Motor Power | KW | 15 | 18.5 | 22 | 30 |
| Heater | KW | 10 | 16 | 18 | 18 |
| Machine Dimension | m | 5.2x1.3x2.1 | 5.7x1.4x2.3 | 6.3x1.5x2.3 | 6.5x1.6x2.2 |
| Machine Weight | t | 4.8 | 6.6 | 7.8 | 8.5 |
>>
