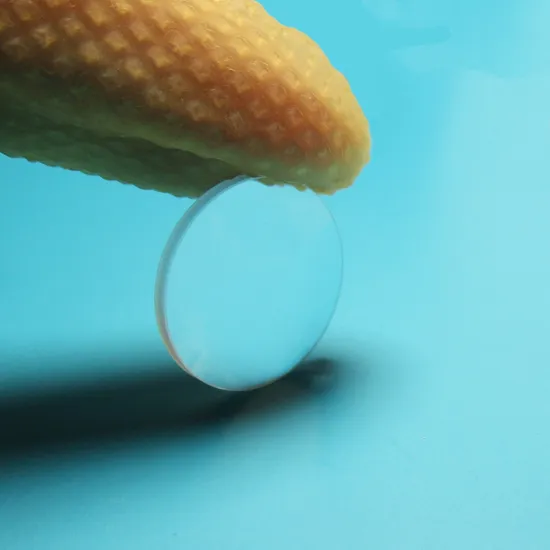

Optical High Power Laser Collimating Lens Plano Convex Spherical Focus Lens

US$10.00
5-9 Pieces
US$8.00
10-99 Pieces
US$4.00
100+ Pieces

Basic Info.

Model NO.
JCQM 01012
Usage
Lighting, Medical, Optical, Photography
Type
Achromatic
Transmittance
>95%
Shape
Double Glue
Material
Optical Glass
Lenses Color
Clear
Certification
RoHS, ISO9001, CE
Customized
Customized
Coating
HMC
Diameter
0.6mm-300mm
Diameter Tolerance
+/-0.05mm
Focus Length
1mm-2000mm
Focus Length Tolerance
<1%
Surface Quality
40-20
Accuracy
1/4
Eccentricity
<3′
Chamfer
0.2mm*45°
Transport Package
Optical Paper, Foam Board and Hard Box
Specification
0.6-300mm
Trademark
Juncheng
Origin
China Changchun
HS Code
9001909090
Production Capacity
500000 Pieces Per Month

Packaging & Delivery

Package Size
17.00cm * 12.00cm * 15.00cm
Package Gross Weight
1.000kg

Product Description

Product Description
Optical Lenses are optical components designed to focus or diverge light. Optical Lenses, which may consist of a single or multiple elements, are used in a wide variety of applications from microscopy to laser processing. Many industries utilize Optical Lenses, including life sciences, imaging, industrial, or defense. As light passes through a lens, it is affected by the lens' profile or substrate. A Plano-Convex (PCX) or Double-Convex (DCX) lens causes light to focus to a point, while a Plano-Concave (PCV) or Double-Concave (DCV) lens causes the light traveling through the lens to diverge. Achromatic Lenses are ideal for applications requiring color correction, while Aspheric Lenses are designed to correct spherical aberration. Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) lenses are ideal for transmitting the Infrared (IR) spectrum, while Fused Silica is well suited for the Ultraviolet (UV).
CCJC Optics offers the world's largest inventory of off-the-shelf optical components, which includes an extensive selection of stock optical lenses such as Achromatic Lenses or Aspheric Lenses. Many of CCJC Optics' lenses are offered with a variety of coating options for the Ultraviolet (UV), visible, or Infrared (IR) spectrums.
Material SCHOTT/ HOYA/ OHARA/ CDGM optical glass
Focal Length Tolerance ±1%
Diameter Tolerance +0.0/-0.1mm
Thickness Tolerance ±0.1mm
Surface Accuracy λ/4@632.8nm
Surface Quality 40-20
Centration <3'
Clear Aperture >90%
Chamfer <0.2×45°
Coating:AR
A:350-650nm
B:650-1050nm
C:1050-1580nm
