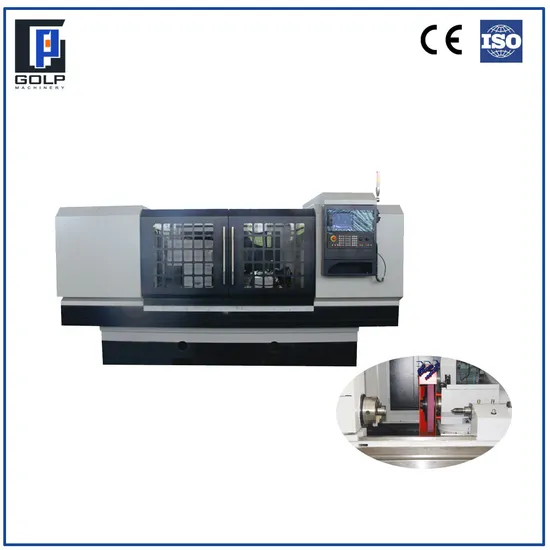

Precision Horizontal CNC External Cylindrical Grinding Machine with Siemens Systems for Cardan Shaft

Product Description

Δ. CNC cylindrical grinding machines are pre-programmed according to the processing requirements and are processed by numerical information commands from the control system, and are mainly used for grinding cylindrical and conical external surfaces. CNC cylindrical grinding machines are generally characterized by a high degree of versatility and modularity, high precision, high rigidity, high efficiency and high adaptability. Δ. Depending on the type of CNC cylindrical grinding machines, they are suitable for batch processing of parts related to the automotive, motorcycle, air compressor, bearing, aviation, aerospace and other industries.

CNC cylindrical grinding machine
Name		Length
		500mm	1000mm	1500mm
Grinding OD scope		8-320mm
Top center height		180mm
Longitudinal movement distance of worktable		550mm	1050mm	1550mm
Rotating angle of worktable		+4,-3°
Moving distance of grinding wheel frame		200mm
Taper of head and tail frame tops		Morse No.5
Chuck diameter of head frame		200 mm
Move amount of tail frame sleeve		40 mm
Max.Size of grinding wheel		600*20- 60*305mm
Servo motor power of X axis		11nm
Servo motor power of Z axis		20nm
Positioning accuracy of X/Z axis		8um
Repeat positioning accuracy of X/Z axis		2um
Motor power of grinding wheel		11 kw
Total power of machine tool		21.5kw
Weight of machine tool		7500kg	8600kg	9800kg
Size of machine tool (mm)		3700*2800*2600	4300*2800*2700	5200*2800*2800
Processing accuracy(standard specimen)	Roundness	0.002 mm
	Cylindricity	0.005 mm
	Surface roughness	Ra0.32um

WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.
Q:What's your payment terms?
A:T/T,L/C,Paypal,Western Union etc.
Q:How long is the product warranty?
A: 24 months
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. Our products have been exported to Asia, South America, Africa, and have developed a good world wide reputation.
Q: What kind of product certification do you have?
A: All our products have passed ISO9001 and CE certifications. We have strict quality inspection process before leaving our factory in order to offer the best quality machines to our customers.
Q: Do you have after sales service?
A: Yes, we have special service team which will offer you professional guidance, or On-site installation in customer Factory.
Q: Do you test all your goods before delivery?
A: Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.

---
