Chaoyi Automaticnormal Type 1.45meter-2.4meter Hinge Joint Farm Field Fence Making Machine

Product Description

Product Description

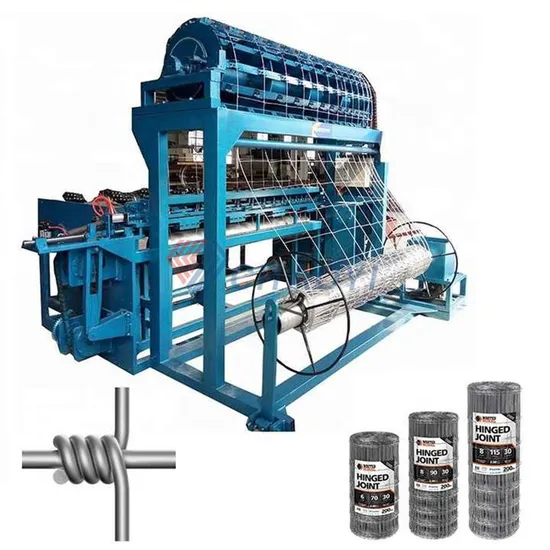

CHAOYI Automatic Europe Type 1.45meter-2.4meter Hinge Joint Farm Field Fence Making Machine

The grassland fence machine is also called field fence machine,cattle fence machine or farm fence machine,hinge joint fence machine.This machine can produce.grassland fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.
Our machine adopts sophisticated computer control,advance manufacturing technique.It have the featurers of novelty,high degree of
automation, reliaility and operational safety, long life and easy operation.
other Field Fence Making Machine


Specification

Hinge joint fence machine Parameter	CY-1422	CY-1652	CY-1880	CY-2000	CY-2400
Inner wire diameter	1.8mm-2.5mm	1.8mm-2.5mm	1.8mm-2.5mm	1.8mm-2.5mm	1.8mm-2.5mm
Edge wire diameter	2.0mm-3.5mm	2.0mm-3.5mm	2.0mm-3.5mm	2.0mm-3.5mm	2.0mm-3.5mm
Fence height	1422mm	1652mm	1880mm	2000mm	2400mm
Efficiency	45row/min	45row/min	45row/min	45row/min	45row/min
Motor	5.5KW	5.5KW	7.5KW	7.5KW	11KW
Voltage	Can choose	Can choose	Can choose	Can choose	Can choose
Distance of weft wires(mm)	5cm-60cm	5cm-60cm	5cm-60cm	5cm-60cm	5cm-60cm
Distance of warp wires(mm)	89+89+101 +114+127 +140+153 +178+203+229	89+89+101 +114+127 +140+153 +178+203 +229+229	89+89+101 +114+127 +140+153 +178+203 +229+229+229	13x100 +2x150 +2x200	15x100 +2x150 +3x200
Weight	3.2T	3.4T	3.9T	4.1T	4.9T
Dimensions(m)	2.9x3.0x2.4	3.2x3.0x2.4	3.4x3.0x2.4	3.5x3.0x2.4	3.9x3.0x2.4

1.Adopts sophisticated computer control, advanced production technology.
It can weave the weft and warp wire automatically together to form the field fences.
2.Reliable property, high efficient, simple operation, low-cost maintenance.
3.The finished products enjoy innovative structure, firm and precise weaving,neat and beautiful and diverse
4.Specifications: Hinge Joint:savings worth the worth the price to have.
5.Material: galvanized wire, low-carbon steel wire, steel wire, iron wire

Product Paramenters
Details Images

Machine Advanges:
1. brand reducer, the best brand in China. Long service life, good quality, high stable working.
2. Frequency-variable motor is controlled by Delta inverter, adjustable working speed, saving 30% energy. Schneider electric
components, low failure rate.
3. Straightening rollers are specially designed for hard wire.
4. Every cross wire is equipped with one push rod, more powerful.
5. Gear cover protect the safety of operator, also protect the machine.
6. Pneumatic twisting and cutting, speed faster, high output power.
7. Twisted head is made of hardened mold steel (HRC28), long service life.
8. Mesh roller is strong, easy to install and take off.


Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

We have 2 senior engineers,10 senior technicians, more than 100 employees.
MainProducts: Hinge Joint Fence,Fixed Knot Fence and Hinge Joint Fence Machine, Fixed Knot Fence Machine,Welded Wire Mesh Machine,Chain link Fence Machine,Barbed Wire Machine etc.
Supply Capacity: Field Fence 40000m/day with 14sets fence machine Each Machine 10Sets/month
Main Market: South Africa,Asia,South America,North America,Middle East,Europe,etc . Advantages of our
factory:
1)Have cooperated with a lot of importers for more than 10 years;
2)Experienced in doing business with big customers;
3)Own designing team for new products development;
4)Factory audited by ISO,BV.
5)Have our own inspection team to do the qualitycontrol..
