Pressure Pump 75gpd 10-40psi Inlet 0.85L/M @70psi Max 140psi Stabilized Outlet Pressure Ec204

US$16.95 1 Piece (MOQ)

Basic Info.

Model NO.
EC-204-75A
RO Capacity
75gpd
Voltage
24VDC
Inlet Pressure
10psi - 40psi
Flow
0.85L/Min @ 70psi
Current
1.0A @70psi
Max Current
1.4A
Max Pressure
110psi
Patent Product
Yes
Transport Package
12 PCS/Carton
Specification
202 x 104 x 100 mm
Trademark
E-CHEN
Origin
China

Product Description

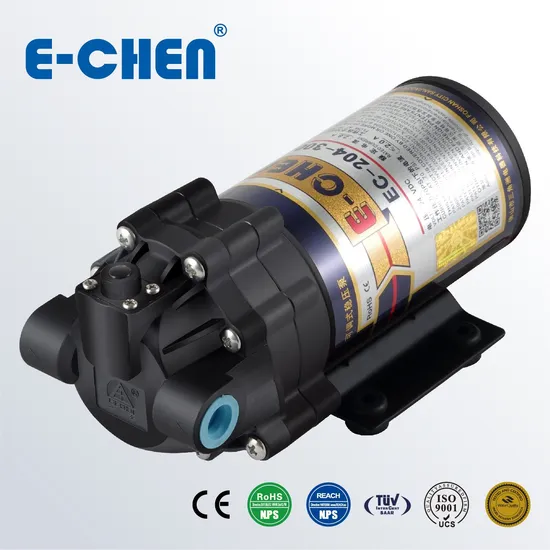

E-CHEN RO Booster Pump 204 Series
The 204 series is designed for household RO system for unstable water pressure. The advanced pump head technology stabilizes outlet pressure at 70psi - 80psi while inlet pressure is between 10 - 40 psi. Available at 50, 75, 100, 150, 200, 300, 400, 500 and 600 GPD.
Features
Constant pressure invetion design on tunnel-type outside circulation to extend the life of RO membrane Solution for water pressure flucctuation problem, suitable pipe pressure: 10-40 psi
No influence by climate and temperature
No decompression
No water leakage problem
Constant pressure technology to ensure stable pressure work on RO membrane
Materials of Construction
Nylon Housing
EPDM Valves
Santoprene Diaphragm
Stainless Steel Fasteners
Applications
Pre-Filter Water Treatment
RO Boost
Carbonation Systems
Misting Systems
Medical Labwater
Fuel Cells
Reverse Osmosis Water Purification System
Packing
Net Weight: 2.15Kg/ea
Growth Weight: 27.5kg, 12pcs/crt
Carton Size: 50 x 26.5 x 35.5 cm
EC-204-75A
