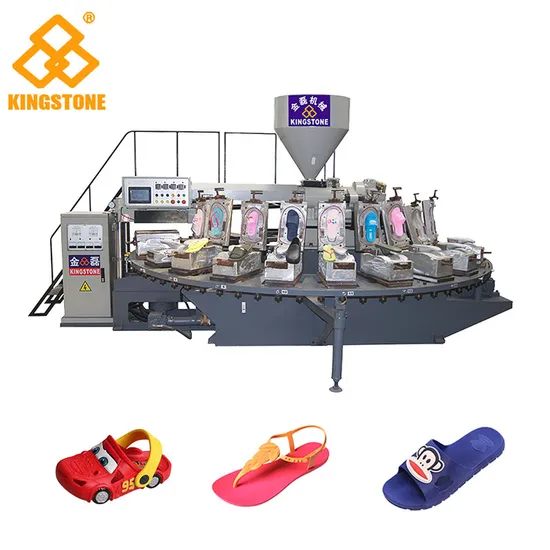

Automatic Small Production Line for PCU Slipper

Negotiable 1 SET (MOQ)

Basic Info.

Model NO.
JL-108
Power Supply
Hydraulic
Applicable Material
Plastic
Function
Make Slipper
Name
Slipper Making Machine
Type
Rotary Machine
Work Stations
10/12/16/20/24/30
Machine Weight
5 Tons
Finished Products
PVC Slipper, Sandals, Flip Flop
Raw Materials
PVC Pcu
Output
120-200 Pairs Per Hour
Shoe Mould
One Mould One Piece
Mould Size
600*280mm
Guarantee
2 Years, The Longest Time in China
Transport Package
Plastic Film Packing
Specification
4.6*3.6*2.3m
Trademark
Kingstone
Origin
Dongguan City, China
HS Code
8477101090

Product Description

>> Descriptions Product:Specialized in producing single color outsoles, slippers, sandals and short-height boots.
It is particularly effective to the making of all-plastic sport shoe, and leisure shoes etc.
Raw Material:Suitable for all kinds of thermoplastic raw materials,, such as PVC and PCU.
1. It could be equipped with air blowing system and can produce light weight,
particularly the need for reinforced cooling effect.
2. The reversible turntable in case of emergency will eliminate abnormality and upkeep safety operations.
3. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.
4. The well-interconnected oil circuit by electric control can reduce waiting time,quicken production rate, and promote productivity.
5. Conformed to human engineering in design, it features easy and friendly operation.
6. The devised C-shaped structure that strengthens cooling system suits particularly the need for reinforced cooling effect.
7. The multi-station mechanism is suitable for numerous molds to work in production line.
It saves the time for the mold-change and extends the length of cooling time.
8. Specially designed, the oil pressure circuit board is simple in structure.
The function description of various switches is clearly indicated.
>> Machine Photos
>> Machine specifications
Machine model JL-108
Mould-clamping Unit
Work station 10,12,16,20,24,30
Clamping force TON 80
Opening stroke MM 210
Mould dimension MM 600*280
Height of injection nozzle MM 280
Injection Unit
Injector SET 1
Screw diameter MM 60/65/70
Screw L/D ratio L/D 20
Max.injection volume cm3 650-1000
Injection speed Cm/s 10
Screw rotation speed R.P.M 0-200
Electricity Consumption Normal Servo
Heating power of injector KW 7 7
Hydraulic unit motor KW 18.5 15.7+7.5
Total power KW 25.5 30.2
Temperature control Section 4 4
Power consumption per hour Kw/h 15-20 7-10
Dimension and Weight 24 Stations
Machine dimension (L*W*H)MM 4600*3600*2300
Machine weight KGS 5000
*Note:Above data only for reference.

>> Machine drawing
>> Finished Products
The machine can produce various kinds of slippers, sandals, flip flops for women, men and kids.
>> Package & Shipping
For important spare parts, we will pack it with plastic film and carton box or wooden box.
The main machine is pack with plastic film.
Whole machine, use one 20HQ container.
We will choose the suitable container according to your order products.
