Digital Switch Rail Height Gauge for Railway Measurement

Product Description

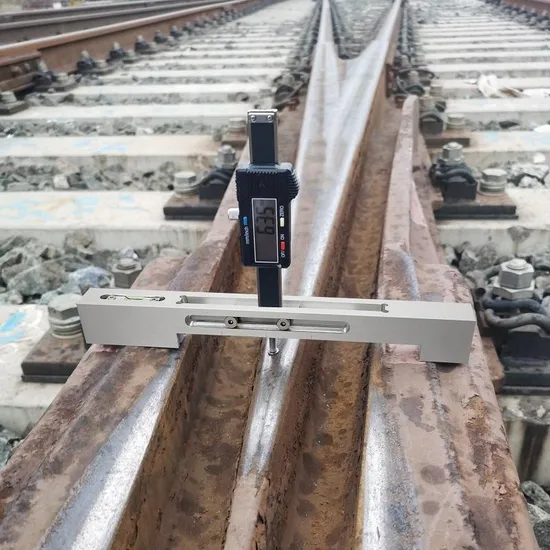

Products Description Digital Switch Rail Height Gauge For Railway Switch and Crossing Wear Measurement Switch Rail Height Gauge is mainly used to measure the descent height value of the switch rail relative to the basic rail and
point rail relative to the wing rail . This instrument has the features of high measuring precision, convenient calibration,
simple structure, light weight and easy to carry. Reasonable switch rail height can not only ensure train running safely and
smoothly, but also reduce the interaction between wheel and rail effectively,reduce the dynamic stress of track structure, keep the track in good geometric state, thus reduce the maintenance workload.
BENEFITS
1. Smart and Portable
The size of the horizontal rod is about 300mm, and the vertical rod is about 250mm. The ruler body is smart and portable.
2. LCD Digital display, easy to read.
3. High Accuracy
The measurement accuracy can reaches 0.01mm.The measurement results can be display instantly
4. Multifuncional, Wide range of application .
It can measure five items to meet different requirements:
1) The descent height value of the switch rail
2) The descent height value of the point rail
3) The height of check rail
4) The height of switch roller
5. This device is equipped with a simple calibrator ,could be used for quick calibration before each use
6. The measure head could be moved from side to side,suitable for all kinds distance tracks. Measure head could move range is 60mm,could be used for measuring different distance switch rail and point rail.
7. Replaceable measuring probe, suitable for different usage
When measuring the height of the switch rail and point rail relative running rail, using the flat measuring probe;
When measuring the rail surface dent, using the sharp measuring probe.
8. Metric /Imperial unit PRODUCT SPECIFICATIONS

Model	LJ-JGJD-I
Type	Switch Rail Gauge
Material	Stainless Steel
Dimensions (L x W x H) (mm)	270*22*180mm
Measure range	-5~30mm
Accuracy	0.05mm
Resolution	0.01mm
Working humidity	≤93%RH
Size	270*22*180mm
Weight	0.45kg
Power	Button battery(1.5V)

Details Images Package & Delivery Aluminum box + pe bag+pe foam+paper carton, 5units/carton , carton size:168*26*28mm G.W: 18KG Certifications Company Profile Wuhan Linkage track Co., Ltd. established in 2022, we are a rapidly growing company involved in the design and manufacture of an extensive range of equipment for the railway industry. We started our business from producing railway measurement device in 2003 and wide our product range to small rail machines like rail cutting machine ,rail grinding etc . Our company has expanded its operation to include three branch office , location facilitates in Xiangyang ,Wuhan and Guangzhou China. Now, Linkage family of brands provides a diverse and comprehensive product line for different markets and demands. Our products are sold in more than 50 countries and regions worldwide. Market acceptance is backed by ISO9001, European CE certification . As a Chinese mainland based company, we like to take our advantage of low cost and strive to offer you quality products with most competitive pricing with integrity.

---
