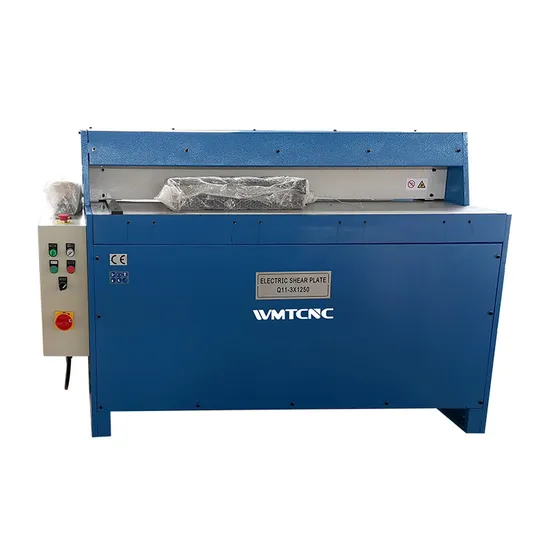

Q11-4*1250 Electrical Shearing Machine with Lower Price

US$3,615.00 1 Sets (MOQ)

Basic Info.

Model NO.
Q11-4*1250
Condition
New
Warranty
1 Year
Automatic Level
Manual
metal forming machine
electrical shear
Shearing Angle
1.3-2.4
Backgauge Travel (mm)
0 - 500 mm
Key Selling Points
Competitive Price
Voltage
220V/380V
Warranty of core components
1 Year
Max. Cutting Width (mm)
1320
Weight (KG)
3850 KG
Blade Length (mm)
1300 mm
Extra Services
Cut To Length
Core Components
Motor, Gear, Gearbox
Max. Cutting Thickness (mm)
4 mm
Material / Metal Processed
steel
Power (kW)
5.5 kW
Transport Package
Polywood Case in Carton.
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT
Origin
Anhui, China
HS Code
8461202000
Production Capacity
100 Set/Sets Per Month

Product Description

Machine Details Feature: 1.Long-life of quality blade 2.Back gauge is available to give fine adjustment 3.Simple construction with good apprearance 4.Easy to operate with lower energy consumption 5.Wisely used for medium and thick steel
Item No. Q11-3*1250 Q11-3*2050 Q11-4*1250 Q11-2*2050
Max shearing thickness-mm 3 3 4 2
Max Shearing width-mm 1250 2050 1250 2050
Shearing angle 2.4°
No.of stroke 30 30 30 30
Motor power 3 3 4 3
Back gauge-mm 630 630 630 630
Packing size(cm) 184*103*135 266*116*147 187*116*147 266*116*147
N.W/G.W 980/1140 1520/1740 1200/1400 1360/1580
