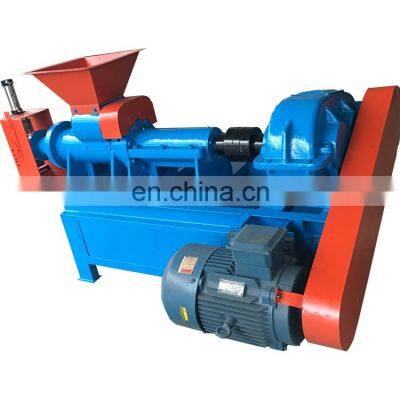

Wood waste BBQ charcoal making machine
Introduction:
Charcoal briquette machine shows the features of high capacity, low energy consumption, compact and durable. Many performance data such as capacity wood briquettes density, electricity consumption and wearable degree has reached advanced level. Charcoal briquette machine can be used as charcoal powder briquette machine by replacement of some spare parts. The out diameter of finished briquettes is 40-80mm.
1. This series of Briquette Machine is a new type wood briquette machine; the finished products are more solid.
2. The density, strength and hardness of products are very high.
3. Our briquette machine with higher capacity and lower energy consumption, its capacity can reach to 1TPH.
4. This kind of straw briquette machine is very popular in the European market
obstacle operation and maintain, the smart figuration, the security alarm system and noiseless featureless.
Processing flow - chart:
Biomass material → Crush → Dry → Briquette → Carbonize → Charcoal
1 Crush the raw material into small pieces (diameter is about 3-5mm)
2 Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3 Put the material into feed let of briquette machine
4 Produce the briquette stick from biomass material without any additive
5 Carbonized the briquette stick
Usage:
It can take sawdust, wood, rice husk, coconut shell, peanut shell & other woody material into briquette, which can be used in boiler, heating & warming.
Working principle:
Briquetting is a process that biomass is compressed under high pressure and high temperature.
The lignin content that occurs naturally in biomass is liberated under high pressure and temperature. Lignin serves as the glue in the briquetting process, thus binding, compressing the biomass to form into high density briquettes.
During this process, no binder needs to be used. So the output briquette is a type of clean and green fuel that is ideal for use in furnaces, boilers and open fires. The density of the briquettes is 900-1400kg/m.
Parameter:
Model
| Power
| Output
| Briquette diameter
| Weight
| Dimension
|
ZBJ-11
| 11 kw
| 140-200 kg/h
| 50 mm
| 600kg
| 1.65*0.6*1.55m
1.8*0.6*1.6
|
ZBJ-15
| 15 kw
| 140-200 kg/h
| 50 mm
| 600kg
|
ZBJ-18.5
| 18.5
| 200-250 kg/h
| 50 mm
| 700kg
|
ZBJ-22
| 22 kw
| 260-300 kg/h
| 50 mm
| 850kg
|
Advantages of machine-made charcoal:
· Increase the net calorific value per unit volume after biomass briquetting
· Easy to transport and store as densities product
· Uniform in size and quality as a kind of biofuel briquette
· Smokeless, odourless, innocuity
· Long burning, high heat value
· No bursting, low ash
>>
