Square 12VDC motor car central locking actuator for car door lock actuator

Product Description

Product Description
Product Description

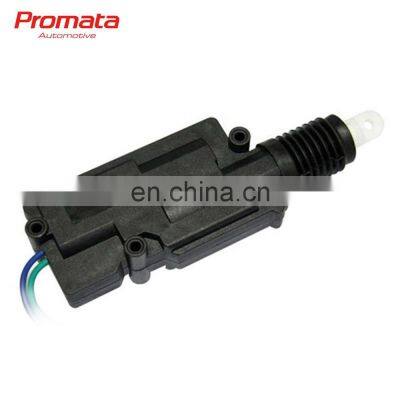

Factory supply square 12VDC motor car central locking actuator used for car door lock actuator
Key features:
1.Square locking actuator for central locking system
2.Vehicle: Square Actuator
3.Location: right side
4.Application: Power
5.Type: OE replacement
6. Warranty: 1 year
7.Sample available
8. Can make your logo on the product

Technical data:
1. PUSH/PULL FORCE ≥4.5kg
2. Voltage DC12V
3. Operate life ≥50,000times
4. Current without load 150mA
5. Short current <4.5A
6. Operating distance/stroke 20.00±1mm
7. Active time(ON/OFF) 0.2S-0.3S
8. Continuous action Power-on 200ms, stop 7.5s per cycle
9. Operate temperature -40 to +80 degrees Celsius
10. Operating humidity ≤75%
Packaging & Shipping
Packaging:
QTY: 100pcs/CTN
G.W: 15 kg
Meas: 49×33×18CM
Shipping:
Our Services
Guarantee & Customized:
1.Quality Guarantee.All item enjoy 1~5 years warranty from the date of shipped on board;
2.Problem Solving.If there is any problem with our products (no-human damage) , a bran-new one can be replaced in the new order .
3.ODM & OEM service provided.We are the manufacturer of vehicle electronic products for 15 years with strongly developing ability.
Company Information
About us:
Founded in 2001, Promata is an ISO 9001/TS16949 certified factory occupied 20,000 square meters.
Our cooperation partner: Schrader, Steelmate, Audiowell, Toyota (Indonesia), Great wall Motor, Changan Automobile, Dongfeng Motor, etc..We work together with our partners to create value for consumers.
