US$3,000.00-3,800.00
|
1 Ton
(MOQ)
|
Basic Info.
Model NO.
Graphite Electrode
Manufacturing Technique
Machining
Shape
Graphite Electrode Rod
Carbon Content
High-Carbon
Model No.
RP, HD, HP, Shp, UHP
Forming Way
Molded Graphite
Raw Material
Petroleum Coke, Needle Coke, Coal Tar
Applicattion
Eaf Arc Furnace Smelting Steel
Superiority
Superiority: Low Consumption Rate
Transport Package
International Standard
Specification
Customizable
Product Description
Product Description

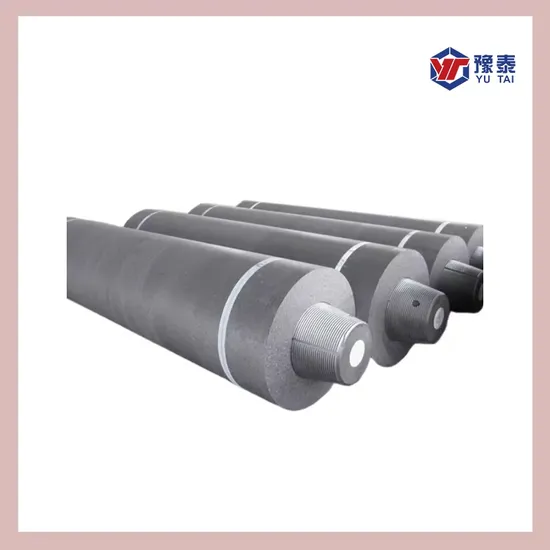

Graphite electrodes are used mainly in ladle furnaces, electric-arc furnace steelmaking,
Yellow phosphorus furnace, Industrial silicon furnace or melting copper. They are presently
the only products available that have high levels of electrical conductivity and the capability
of sustaining the extremely high levels of heat generated in this demanding environment.
Technical Characteristics of Graphite Electrode RP, HP, UHP
| Name | Unit | Nominal Diameter |
| UHP Ultra-High-Power | HP Superstrong | RP Conventional Power |
| ≤Φ400 | ≥Φ450 | ≤Φ400 | ≥Φ450 | ≤Φ300 | ≥Φ350 |
| Resistivity | Electrode | ΜΩ · m | ≤5.5 | ≤6.5 | ≤8.5 |
| Nipple | ≤4.5 | ≤5.5 | ≤6.5 |
| Flexural Strength | Electrode | MPa | ≥11.0 | ≥10.5 | ≥9.8 | ≥8.5 | ≥7.0 |
| Nipple | ≥20.0 | ≥16.0 | ≥15.0 |
| Elastic Modulus | Electrode | GPa | ≤14.0 | ≤12.0 | ≤9.3 |
| Nipple | ≤18.0 | ≤16.0 | ≤14.0 |
| Density | Electrode | g / cm3 | ≥1.66 | ≥1.67 | ≥1.62 | 1.6 | ≥1.53 | ≥1.52 |
| Nipple | ≥1.75 | ≥1.73 | ≥1.69 |
| Coefficient Of Thermal Expansion | Electrode | 10-6 / ºC | ≤1.5 | ≤2.4 | ≤2.9 |
| Nipple | ≤1.4 | ≤2.2 | ≤2.8 |
| ASH | % | ≤0.3 | ≤0.3 | ≤0.5 |
| Note: 1.Koeffitsient ash content and thermal expansion as the reference index, the coefficient of thermal expansion (100 ºC ~ 600 ºC), Custom manufacturing. |
Technical Characteristics of High Density Graphite Electrode (HD)
| Name | Unit | Nominal Diameter |
| 75-200 mm | 250-300mm | 400-500mm |
| top grade | first grade | top grade | first grade | top grade | first grade |
| Resistivity (Not More Than) | Electrode | ΜΩ · m | 8.0 | 9.0 | 8.0 | 9.0 | 8.0 | 9.0 |
| Nipple | 7.5 | 7.5 | 7.5 |
| Flexural Strength(not less than) | Electrode | MPa | 10 | 9 | 8 |
| Nipple | 13 | 13 | 13 |
| Elastic Modulus(no more) | Electrode | GPa | 12 | 12 | 12 |
| Nipple | 14 | 14 | 14 |
| Density(not less than) | Electrode | g / cm3 | 1.58 | 1.58 | 1.58 |
| Nipple | 1.68 | 1.68 | 1.68 |
| Coefficient Of Thermal Expansion (No More) | Electrode | 10-6 / ºC | 2.7. | 2.7. | 2.7. |
| Nipple | 2.5 | 2.5 | 2.5 |
| Ash Content (not more than) | % | 0.3 | 0.3 | 0.5 |
| Note: 1. The coefficient of ash content and thermal expansion as a reference index. |
Technical Characteristics of a Quasi-Superhigh-Gauge Graphite Electrode (EGPK-SHP)
| Name | Unit | Nominal Diameter (mm) |
| 300, 350, 400 | 450, 500 |
| Resistivity (not more than) | Electrode | ΜΩ · m | 6.2 | 6.5 |
| Nipple | 5.5 | 5.5 |
| Flexural Strength(not less than) | Electrode | MPa | 10.5 | 10 |
| Nipple | 16 | 16 |
| Elastic Modulus(no more) | Electrode | GPa | 14 | 14 |
| Nipple | 18 | 18 |
| Density(not less than) | Electrode | g / cm3 | 1.65 | 1.64 |
| Nipple | 1.72 | 1.7 |
| Coefficient Of Thermal Expansion (no more) | Electrode | 10-6 / ºC | 1.5 | 1.5 |
| Nipple | 1.4 | 1.4 |
| Ash Content (not more than) | % | 0.3 | 0.3 |
| Note: 1. Zonality as a reference index. |
Henan Yutai High Temperature New Material Technology Co., Ltd.
The company is a high-tech enterprise integrating scientific research, production, sales and service. It is committed to providing first-class solutions and services to the global high-temperature industry, including steel, aluminum, electricity, glass, kilns, non-ferrous metals, cement industries, etc.
The company has won widespread praise in domestic and foreign markets for its excellent product quality and after-sales service.
All employees of Yutai sincerely look forward to working with you for a win-win situation.
1. OEM, ODM?
Most certainly, we can also customizable to meet unique requirements, for instance, indicators, sizes, etc.
2. Project questions, such as kiln maintenance, available for consultation?
Yes, PLEASE, We have experienced product technical consultants to communicate online.
3. How do you conduct quality testing on your products?
We strictly follow the quality management system, and we have a logistics chemistry laboratory. Here are some of the ways we conduct quality testing:
1) Raw material inspection
2) In-process inspection
3) Finished product inspection
4) Performance testing
5) Stability testing
4. How can I get a sample?
Sure, before your first purchase order, you can get a free test sample.
>>
