US$5,000.00-30,000.00
|
1 set
(MOQ)
|
Basic Info.
Guide Rail
Horizontal Guide Rail
Tool Holder
Four-Station Tool Holder
Controlling Mode
Artificial
Certification
CE, ISO 9001
Max Work Piece Length
750mm
Max Turning Dia of Workpiece on Tool
190mm
Max Longitudinal Travel of Tool Rest
630/880/1380mm
Max Transverse Travel of Tool Rest
220mm
Max Turn of Workpiece in Saddle Groove
520mm
Valid Length of Gap
200mm
Spindle Center Height
175mm
Spindle Head Connection
C6
Through Hole Diameter of Spindle
46mm
Taper of Spindle Inner Hole
Mt6
Spindle Rotation Speed
25-1600r/Min
Taper of Inner Hole of Top Sleeve
Mt4
Transport Package
Wooden Pallet and Wooden Case
Specification
1950*950*1200mm
Product Description
√ The hardness of machine guide way is in above HRC52°, use high precision cnc guide way grinding machine machining, high durability for guide way, good precision for body machining.
√ Lathe head box, feed box, sliding box use cnc machine center machining, ensure machining precision of box.
√ Transmission gear usd cnc gear grinding machining, and noise test, low gear noise.
1. Quenched Guideway Quenched guide rail, high hardness,wear resistance.
2. Tool Post Standard with 4 position tool post, quick change tool post is optional.
3. Three-Jaw Chuck Standard with 3 jaw manual chuck, can choose 4 jaw chuck as optional.
4. Tailstock Standard with manual tailstock, especially suitable for shaft bar workpieces.
5. Working Light Equipped with working light for easy operation.

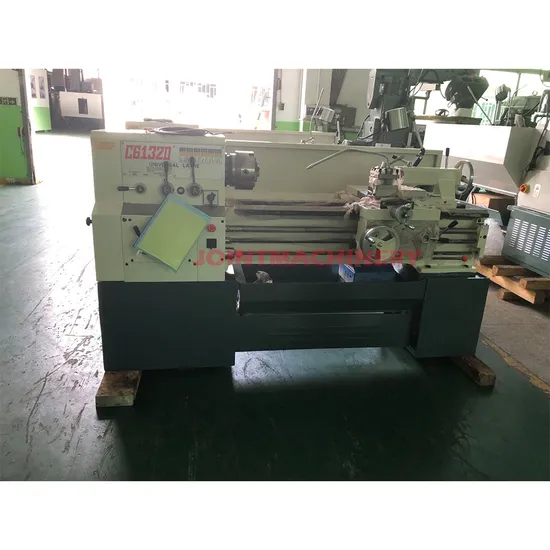

Horizontal Metal Cutting Precision Engine Lathe Machine Manual Lathe Machine
| Model | C6232D |
| Max swing over bed | mm | 350 |
| Max work piece length | mm | 750/1000/1500 |
| Bed rail width | mm | 320 |
| Max turning diameter of work piece on tool holder | mm | 190 |
| Maximum longitudinal travel of tool rest | mm | 630,880, 1380 |
| Maximum transverse travel of tool rest | mm | 220 |
| Bar diameter | mm | 45 |
| Maximum turning diameter of workpiece in saddle groove | mm | 520 |
| Valid length of gap | mm | 200 |
| Spindle center height | mm | 175 |
| Spindle head connection | | C6 |
| Through hole diameter of spindle | mm | 46 |
| Taper of spindle inner hole | | MT6 |
| Spindle rotation speed | r/min | 25-1600 |
| Taper of inner hole of top sleeve | | MT4 |
| Maximum movement in tip sleeve | mm | 130 |
| Maximum lateral movement | mm | ±10 |
| Thread | Inch system | | 80-33/4N/1" |
| Metric system | | 0.45-20mm/r |
| Module | | 0.25-10mm |
| Diameter pitch | | 160-31/2DP |
| Motor specification | | YD132M-8/4-B5 3-4.5KW |
| Belt specification | | 4-A-1900mm/4-A-2000mm |
| Dimension (L*W*H) | 750mm | mm | 1950*950*1200 |
| 1000mm | mm | 2200*950*1200 |
| 1500mm | mm | 2700*950*1200 |
| Nei weight | 750mm | kg | 1350 |
| 1000mm | kg | 1450 |
| 1500mm | kg | 1550 |
Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.
Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
>>
