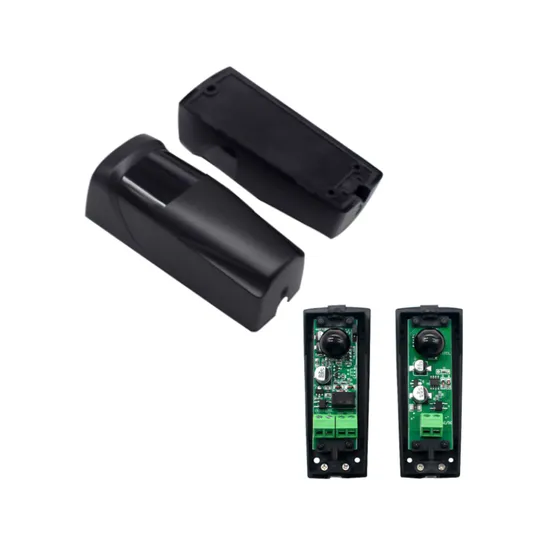

Wireless Photocell Beam Sensor for Automatic Gates, 12V-24V Range 20 Meters

Product Description

Product Name	Battery Infrared Sensor
Function	Widely used for automatic garage door opener gates windows for safety
Package	White box, yellow box, color box optional
Working voltage	Transmitter : 3V (2PCS AAA battery 1.5V LR03), Receiver : 12-24V DC
Working current	Transmitter < 85µA, Receiver < 30mA (24V DC)
Photocell wavelength	940nm
Angle of emission	≤±5°
Receiving range	10-20m (range can be reduced to 30% in bad weather conditions : for rain ,dust ,etc)
Relay contact loading capacity	1A/30VDC
Size	100*40*35mm
Operating temperature	-10ºC to +70ºC

Introducing the innovative Wireless Photocell Sensor, designed for seamless integration with outdoor automatic doors. Operating efficiently between 12V-24V AC/DC, this sensor harnesses the power of infrared technology to ensure flawless performance. With support for battery operation, it offers flexibility and convenience for various applications.
Impressive Features of the Beam Sensor Photocell Infrared Sensor: 1. Thoughtfully engineered with a compact design for effortless installation. 2. Versatile universal photocell infrared sensor, ideal for automatic door openers. 3. Rated IP55, it is suitable for outdoor installations. 4. Anti-glare technology enables operation between -10ºC to +70ºC. 5. A fusion of safety, elegance, economic viability, and comfort.
Detailed Product Overview
Classification of Product
Infrared Sensor, Photocell, Detector Specifications
1. Offering an extensive range of over 200 model variants; OEM & ODM services are available to meet specific needs.
2. Our product meets CE, RoHS, and ISO standards, ensuring superior quality and compliance.
3. Unique patent-protected molds designed specifically for enclosures.
4. Global market reach, spanning Europe, the Americas, and Asia, underscoring our international presence.
5. Sample products available to facilitate testing and evaluation. Terms of Trade
1). Payment method: T/T only, with 30% deposit required before production and the remaining 70% balance due before delivery.
2). Prompt delivery of samples within 3-5 days to expedite your decision-making process.
3). Shipping costs are tailored to your specific requirements for budget-friendly transit.
4). Enjoy substantial savings through discounts, available based on the volume of your order.
5). FOB pricing details are available upon your inquiry to assist in cost estimation.

---
