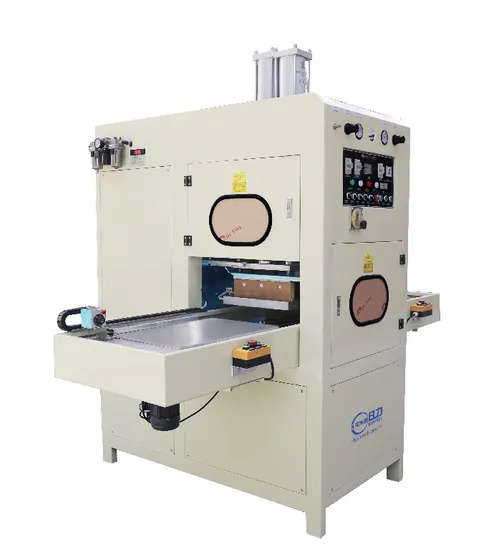

Automatic Welding and Cutting Machine (HR-8000WT)

Product Description

1, Main Application:
Application: Specialize for the plastic product with need to be welded material together and cut the extra edge out simultaneously. This kind of machine can be also called as hf simultaneous welding and cutting machine. Mainly apply for welding and cutting APET, PETG, GAG, Double side clamshell, blister+cardboard, leather, OPP, PU and many other environment-friendly materials. Product Description 1.battery blister package, clamshell packing,
2.clamshell toothbrush packing,
3.Covering tarpaulins, side tarpaulins,
4.Water basins, agricultural products
5.Coverings, sleeves
6.Awnings (screen cloth)
7.Blister packaging
8.Stationery (folders, albums, demonstration files etc.)
9.Car mats (welding on heel pieces and logo's)
10.PVC and PU conveyor belts
11.PVC inflatable boats, water beds
12.Rainwear, wading boots, wading suits
Machine General Features:
1. Auto Sliding Table machine, 2 working stations
2. European oriented high frequency vibration box, more reliable and stable in output
3. Various mold can be applied on this mold
4. Anti spark system will protect mold and generator 5. CE rated machine; factory verified by SGS and BV;
6. Customer's site installation, training & maintenance available
Product Parameters

Model	HR-5000WT	HR-8000WT	HR-10KWT
Power	5KW	8KW	10KW
Voltage	3 phase 380v 50Hz or customize
Frequency	27.12MHz		13.56MHz
Input power	8KVA	15KVA	18KVA
Rectifier	silicon diode
Oscillation tube	8T85RB	7T69RB	E3069
Max pressure	350kg	350kg	350KGS
Operation mode	Pneumatic (Hydraulic press on extra quote)
Max distance of electrodes	200mm
The moving distance of active horn	100mm
The size of upper electrode	300*400mm	300*500mm	400*600mm
The lowwer of lowwer electrode	300*400mm	300*500mm	400*600mm
Welding time	0.01~30s
Net weight	650kgs	650kgs	650kgs
Overall dimension	2200*1250*1950mm	2200*1250*1950mm	2200*1250*1950mm

Company Profile Who We Are:
Since 2000, Shenzhen Hipower Ltd, concentrates on highest quality, on-time delivery, professional technology support,customer-oriented service and competitive price.Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....What we do:Our equipments are widely used in industrial application like: Automotive Parts, Stationery, conveyor belts Tarpaulin, BigCovers,Tents products, Tensile structure, Medical Bags, Blister Packaging, Cylindrical Box, and other plastic welding industries.
Certifications
Packaging & Shipping
Our Advantages Hipower is at the forefront of newest technical developments in the field of high frequency and ultrasonic weldingtechnology, automation of production processes, and other innovative industrial solutions.
After Sales Service a) Customer's site installation, training & maintenance available
b) 3 to 24 hours Online service by Email, Fax, Video Online for basic setup and repairs
c) 12 months warranty for machine, life-long tech. support
d) Recommend equipment of top choice based on your requirements for product;
e) Examining mold drawings on your behalf to confirm optimum structure size meeting the requested process;
f) Providing assistance in manufacturing and modifying tools;
g) Our engineering instruction will guarantee your productive manufacturing of top-quality products.
FAQ Question 01: Are a trading company or Manufactuer? RE: Since 2000, we are the manufacturer in this filed; Our factory can design, develop and manufacture ODM and OEM equipments for clients all over the worlds.
Questions 02: What about Delivery Time: RE: 3 days for standard machine; and 15 to 35 days for custom machines
Questions 03: Payment Term: RE: We accept payment by T/T, L/C, West Union, Paypal.
Questions 04: How do I inspect your machine quality? RE: We always have real machines ready in stock, We shall meet you at airport, hotel, or railway station.
Questions 05: Is the machine easy to use and maintain in future? RE: Yes, it is; we shall provide instructional manual, videos and engineer support via email or video talk online.
Questions 06. How Do You Pack the machines
RE: Our machines will be packed into after treatment wood box
Questions 07. Does the machine power voltage meet buyers' factory power source?
RE:Frequency: 50 - 60HZ Phases: single phase / 3 phases ; Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Questions 9. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.

---
