US$8,000.00-90,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
ISO 9001:2000, ISO 9001:2008, CE, Sheet Metal Processing
Suitable for
Copper, Aluminum, Carbon Steel, Stainless Steel, All Metal
Type
Hydraulic Bending Machine
Transport Package
Packed in Piaywood
Production Capacity
3500 PCS/Year
Product Description

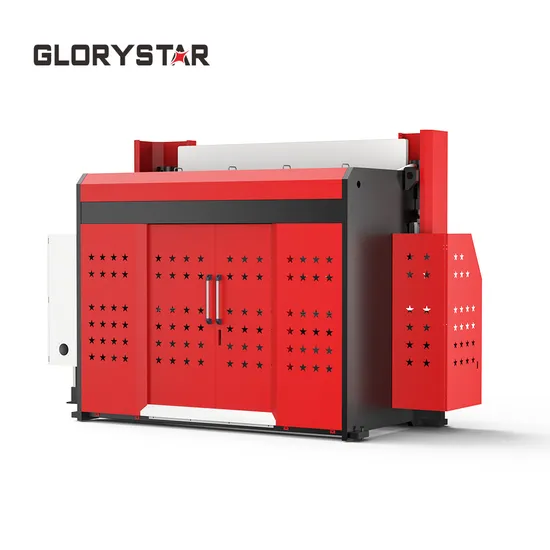

CNC hydraulic bending machine
The GLB CNC Hydraulic Bending Machine produced by Glorystar Laser, with 55 to 240 tons available tonnage capacities, is a fine precision and high-efficiency plate bending processing equipment.
Easy OperationThe Italian ESA professional CNC system has powerful functions, stable performance, simple and easy operation.
High PrecisionEquipped with an Italian famous brand grating ruler, the resolution can reach 0.005mm.
StableAdopted with German Bosch Rexroth whole professional hydraulic system, the split valve group is installed on the top of the cylinder, with high response frequency and stable and reliable performance.
Energy-SavingThe main motor can be optionally equipped with a high-performance servo motor, and the motor speed can be controlled in real-time to reduce the unless work of the oil pump, reduce the oil temperature and noise, and save energy by more than 50%.
>>> Technical Data
| Model Parameters | GLB | GLB | GLB | GLB | GLB | GLB | GLB | GLB |
| 10032 | 16032 | 16041 | 20032 | 20041 | 25032 | 25041 | 40041 |
| Nominal force(KN) | 1000 | 1600 | 1600 | 2000 | 2000 | 2500 | 2500 | 4000 |
| Length of workbench(mm) | 3200 | 3200 | 4100 | 3200 | 4100 | 3200 | 4100 | 4100 |
| Distance among columns(mm) | 2700 | 2700 | 3600 | 2700 | 3600 | 2700 | 3600 | 3300 |
| Maximum height(mm) | 460 | 460 | 460 | 500 | 500 | 500 | 500 | 530 |
| Slider's trip(mm) | 200 | 200 | 200 | 240 | 240 | 240 | 240 | 240 |
| Throat depth(mm) | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 430 |
| X-axis trip(mm) | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
| R-axis trip(mm) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Slider's speed(mm/s) | Downward speed | 180 | 160 | 160 | 120 | 120 | 110 | 110 | 80 |
| Working speed | 10 | 9 | 9 | 8 | 8 | 8 | 8 | 8 |
| Return speed | 150 | 130 | 130 | 100 | 100 | 90 | 90 | 70 |
| Main motor(kW) | 7.5 | 11 | 11 | 15 | 15 | 15 | 15 | 30 |
| Tank capacity(L) | 350 | 380 | 480 | 480 | 480 | 480 | 480 | 1000 |
| Outline size(mm) | Length with doors | 3400 | 3400 | 4300 | 3400 | 4300 | 3400 | 4300 | 4300 |
| -3850 | -3870 | -4750 | -3885 | -4765 | -3885 | -4765 | -4825 |
| Width | 1990 | 2035 | 2035 | 2165 | 2165 | 2175 | 2175 | 2335 |
| Height | 2580 | 2700 | 2700 | 2810 | 2810 | 2865 | 2865 | 3420 |
| Weight(kg) | 8300 | 10000 | 11500 | 12000 | 13500 | 13000 | 14500 | 23000 |
>>> Advantages
A. All-steel welding structure, entire tempering treatment, better rigidity and higher strength.
B. Welding on professional worktable,it ensures the verticality, parallelism and straightness.
C. The frame is stress-relief treated in automatic tempering furnace for 48 hours, temperature changes as 200↗650↘ 200(ºC), to ensure frame stability and precision. The surface is treated with sand blasting and environmental primer.
D. Adopting world top machine tools - Japan TOSHIBA BSF-150 floor type boring milling machining center to finish the frame at one-time, which farthest assures the precision and stability under long time operation.
