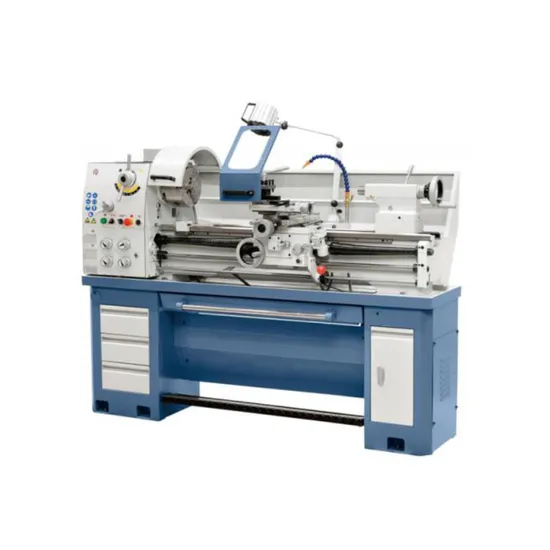

The Bset Sale and Advances China Engine Lathe of Smac (BL0636B)

Product Description

Product Description
Features:
Precision ground and hardened bed ways
The spindle is supported with precision roller bearings
Head stock gears are made of high quality steel, ground and hardened
Easy operating speed change levers
Removable gap is provided for larger diameter work
Spindle speed range 70-2000r/min
Two different lengths of bed are available
Easy operating gear box has various feeds and thread cutting function
ASA D1-4 camlock spindle nose
With or without cabinet according to requirement
Specifications:

ITEMS	BL0636B
Max.swing over bed	14"(360mm)
Max.swing in gap	197/8"(508mm)
Max.swing over slide	81/2"(215mm)
Bed width	73/8"(187mm)
Max.length of workpiece	30"(750mm)40"(1000mm)
Spindle nose	D1-4
Spindle bore	11/2"(φ38mm)
Taper of bore in spindle morse	No.5
Spindle speed steps	8
Spindle speed scope	70~2000r/min
Inch thread	40~21/4T.P.I/32
Metric thread	0.45~10mm/28
Longitudinal feed range	0.0013~0.0173in/r(0.026~0.348mm/r)
Cross feed range	0.0005~0.0059in/r(0.007~0.096mm/r)
Max. travel of tailstock quill	35/8"(95mm)
Taper hole of tailstock	No.3
Electric motor	2HP(1.5KW)110v or 220v(1ph) 220v or 380v(3ph)
Net weight / Gross weight(1000mm)	510/610kg
