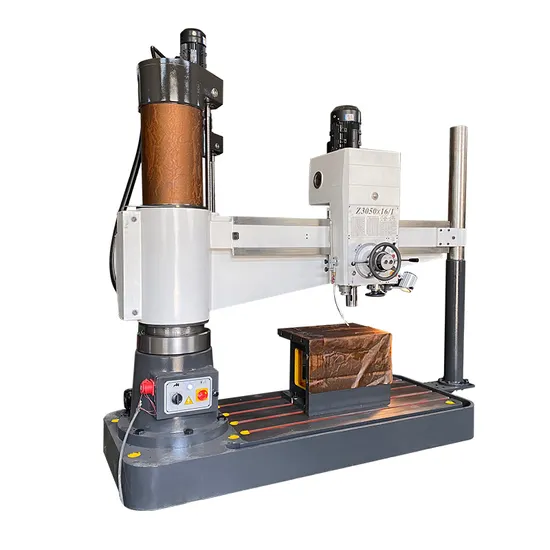

Z3050X16/1 heavy duty radial arm drilling machine with supporting column

US$8,100.00
1-4 Pieces
US$8,050.00
5+ Pieces

Basic Info.

Model NO.
Z3050X16/1
Controlling Mode
Hydraulic
Number of Shaft
0
Hole Diameter
50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Drilling Capacity
50mm
Power
Hydraulic
Spindle Taper
Mt5
Spindle Travel
450mm
Transport Package
Fumigated Exporting Standard Wooden Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMT or customized logo
Origin
Chizhou, Anhui, China
HS Code
84592900
Production Capacity
50 Sets Monthly

Product Description


Main specificaiton for Radial drilling machine model Z3050×16/1
Specification Units Z3050×16
Max. drilling diameter mm 50
Distance between spindle axis and column mm 350-1600
Distance spindle nose and work surface of base mm 320-1220
Rocker arm lifting distance mm 580
Rocker arm lifting speed m/s 0.02
Spindle travel mm 315
Spindle taper Morse 5
Range of spindle speeds r/min 25-2000
Number of spindle speeds step 16
Range of spindle feeds mm/r 0.04-3.20
Number of spindle feeds step 16
The maximum torque of the spindle N.M 500
Spindle maximum feed resistance N 18000
Table size mm 630×500
The spindle box of horizontal moving distance mm 1250
Spindle motor power kw 4
Hydraulic clamping motor power kw 0.75
Cooling pump motor power kw 0.09
Arm lift motor power kw 1.5
Machine weight kg 3500
Overall dimension mm 2500×1070×2840

Standard accessories for Z3050X16/1
Drilling Chuck
Reduction Chuck
Spindle Bar
Wedge Drift
Operation Manual
Certification
Packing List
