US$57.00
|
100 Pieces
(MOQ)
|
Basic Info.
Performance
Line-Rate Router
Architecture
Crossbar System
WiFi Antenna
External Omni WiFi Antenna
4G Antenna
External 4G Antenna
Transport Package
Gift Box
Specification
300Mbps in Wireless
Production Capacity
100000PCS/Month
Packaging & Delivery
Package Size
25.00cm * 25.00cm * 7.00cm
Package Gross Weight
0.800kg
Product Description

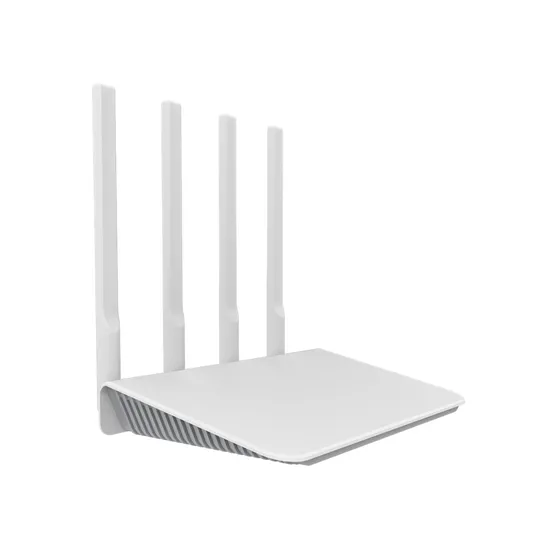

2.4GHz 300M 4G LTE VPN Wireless Router with SIM
Product Description LTE-F300 is an indoor 4G wireless router; Comply with IEEE 802.11b/g/n MIMO standard, the data rate up to 300Mbps, more than 30 end users can access into it; There are 3*10/100Mbps WAN/LAN ports, can be managed by cloud server or APP; In additional, it support watchdog, the device will revert to normal if any abnormal happen, easy to maintenance.
Main Features:
Fashionable appearance and convenient installation. Support hardware watchdog function, automatic recovery of abnormal devices, maintenance free. Hardware Specification
| Model | LTE-F300 |
| CPU | MTK |
| Flash | SPI NOR 8MB |
| DDR | 64MB |
| 2.4G Working frequency | 2.4GHz ~ 2.484GHz |
| 2.4G WIFI protocol | 802.11 b / g / n |
| WiFi Antenna | External 2.4GHz antenna*2: 3dBi |
| 4G Antenna | External 4G antenna*2: 3dBi |
| Max rate | 2.4GHz: 300Mbps |
| 2.4GHz TX Power | 802.11b | 11M | 18±2dBm | 1M | 20±2dBm |
| 802.11g | 54M | 17±2dBm | 6M | 19±2dBm |
| 802.11n HT20 | MCS7 | 16±2dBm | MCS0 | 18±2dBm |
| 802.11n HT40 | MCS7 | 16±2dBm | MCS0 | 18±2dBm |
| 2.4GHz Receiving Sensitivity | 802.11b | 11M | -84dBm | 1M | -91dBm |
| 802.11g | 54M | -70dBm | 6M | -87dBm |
| 802.11n HT20 | MCS7 | -68dBm | MCS0 | -86dBm |
| 802.11n HT40 | MCS7 | -66dBm | MCS0 | -85dBm |
| 2.4G EVM | 802.11b: ≤-10 dB ;802.11g: ≤-25 dB ;802.11n: ≤-28 dB |
| ppm | ±20ppm |
| WAN | 1*10/100M WAN |
| LAN | 2*10/100M LAN |
| Interface | SIM slot |
| 4G Module | Based on country/ region, please contact us to confirm. |
| Button | Reset to factory settings by pressing 6-10 seconds |
| LED indicator | SYS, WAN, LAN |
| Power Supply | DC 12V/1A |
| Max Power Consumption | < 6W |
| Size/ Weight | 200mm×125mm×190mm, 0.35kg |
| Working temperature | Working: -5°C to 45°C;Storage: -40°C to 70°C;Humidity: 5%~95%(Non-Condensing) |
| ESD | Air:±8K, Touch:±4K |
| Electrical Surge | Common Mode: 2K, Differential Mode: 1K |
Firmware Specification
| Home page | WAN download rate, WAN upload rate, runtime |
| Device information, device description, internal network information, external network information, WIFI information |
| Working mode | Gateway mode: After the device connects to the wide area network through the WAN port, it uses static IP, DHCP, PPPOE, or connects to the internet through 4G dialing or other methods |
| Wireless features | SSID broadcasting |
| SSID: 1*(2.4GHz) |
| Hide SSID |
| Wireless encryotion: OPEN, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK Mixed Mode |
| Domain Filter |
| Network | Connection method: 4G (always), broadband WAN (always), 4G (when there is no external network connection) |
| DHCP server |
| PPPOE support |
| Device management | Backup |
| Restore Configuration Information |
| Reset to factory |
| Timed reboot |
| Firmware upgrade |
| System log |
| Other feature | VPN, IPv6, TR069 |
Detailed Photos
>>
