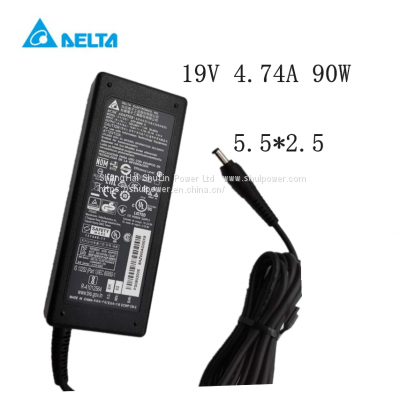

Delta AC DC universal laptop adapter 19V 4.74A ADP-90MD H
Product Details
Product Details
Product Description
Product Description
Technical specifications:
Input:
AC Socket: C6
Input range:90Vac~264Vac
Frequency:47Hz~63Hz
Input current:1.5A Max at 100Vac input voltage
Efficiency:84% Min. at nominal input voltage, maximum load and measured at the end of DC cable
Output
Output Power:90W
Output Volts/Amps:19.0V/4.74A
Output ripple and noise:350 mV peak to peak
DC Plug: can follow up your request
or contact us, we will offer datasheet
Dimensions (mm)
L127.0 x W51.0 x H30.5
>>
