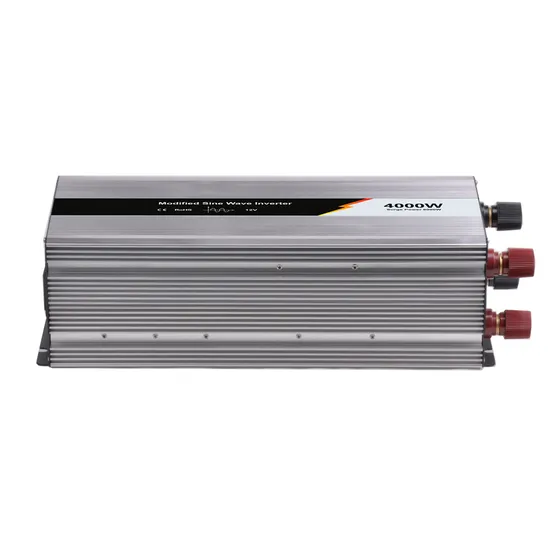

Modified Sine Wave Power Inverter Outdoor Whm-4000 4000W 12V 24V 48V DC to 100V 110V 120V 220V 230V 240V AC Power Inverter

Product Description

WHM-4000 Multi-Voltage Power Inverter 4000W 12V/24V/48V DC to 110V/220V AC with Modified Sine Wave Product Description NOTICE:
1.We do have enough ability to produce your customized order.
2.Samples are available.
3.High quality and competive price.
4.1 years warranty, buy with confidence.
Product Parameters

Model	M-4000W-12V	M-4000W-24V	M-4000W-48V
Output Power	4000W
Peak Power	8000W
DC Input Voltage Range		DC24V(19V-31V)	DC48V(38V-62V)
AC Output Voltage (Single Choice)	100V/110V/120V/220V/230V/240V
Unload Current	≤0.9A	≤0.5A	≤0.35A
Output Frequency	(50Hz±2Hz) or (60Hz±2Hz)
Output Waveform	Modified sine wave
Display	LED or LCD display
USB Output Votlage / Current	5V 2A (Support QC3.0 fast charge up to 18W)
Max. Output Efficiency	88%	90%	92%
Low Voltage Protection	"Alarm ""Bi"" with 2s interval +red and green lights flashing alternately restart automatically when voltage recover"
Over Voltage Protection	" Alarm ""BiBi"" with 1s interval +red and green lights flashing alternately restart automatically when voltage recover"
Over Load Protection	"Alarm ""Bi"" continously +red light flashing / restart automatically when load power recover; If it is closed after twice recover, it need restart manually."
Over Temp Protection	" Alarm ""BiBiBi"" with 1s interval +red and green lights flashing alternately restart when temp recover"
Short Circuit Protection	yes
DC Reverse Connection Protection	Fuse burnt
Low Voltage Alarm Range	10.5v±0.5v	21v±0.5v	42v±0.5v
Low Voltage Protection Range	9.5v±0.5v	19v±0.5v	38v±0.5v
Low Voltage Recover Range	12v±0.5v	23v±0.5v	46v±0.5v
Over Voltage Protection Range	15.5v±0.5v	31v±0.5v	62v±0.5v
Over Voltage Recover Range	14v±0.5v	28v±0.5v	56v±0.5v
Working Temperature	-10ºC~50ºC
Cooling Method	Fan cooling (Temperature control)

Company Profile


FAQ Q1:Are you a factory or trading company?
A1:We are factory.
Q2:Why choose us?
A2:Our factory has been in operation for 17 years,We have enough experience to meet your needs.
Q3:How can I get the samples?
A3:You can pay for the sample this time, and we will refund the sample fee for the next batch order.
Q4:How to order?
A4:Please contact us online to send you a proforma invoice or send us your purchase order by email.
Q5:How many years warranty of your products?
A5: One years.

---
