High Performance Industrial Spray Booth with Integrated Heating Recycling System

US$55,000.00
1-2 Sets
US$53,000.00
3-5 Sets
US$50,000.00
6+ Sets

Basic Info.

Model NO.
CP-20-6
Type
Spray Booth
Certification
CCC, CE, ISO9001
Substrate
Steel
Brand
Compass
Coating
Powder Coating
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Total Power
70kw
Transport Package
Steel Frame
Specification
20 x 6 x5(m)
Trademark
COMPASS
Origin
China
HS Code
8419399090
Production Capacity
200 Sets / Month

Product Description

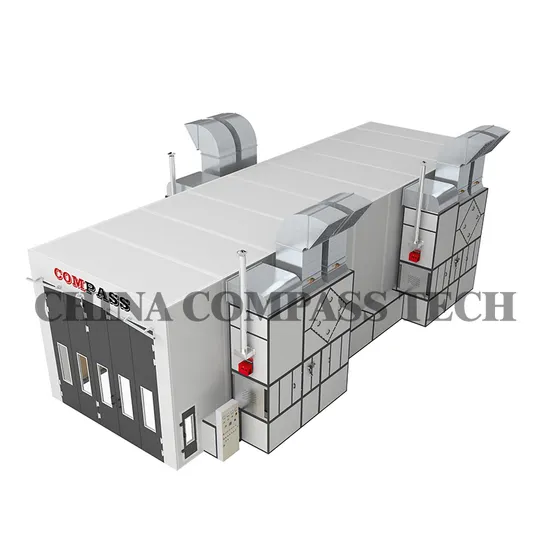

European standard bus spray booth model: CP-20-6
Technical data for CP-20-6 spray booth
Outside Dimension (mm) 20125×9350×5600
Inside Dimension(mm) 20000×6000×5000
Front Door(mm) 5000×4700(W*H)
Service door(mm) 800×2000
Total Power 70kw
Cabin system
Front door Four folded sheet metal door, double side with PU insulated
Wall panel 75mm rock-wool sandwich panel, steel sheet thickness: 0.6mm
Ceiling panel 50mm rockwool sandwich panel.
Basement Cement floor by customer
Door glass 5mm tempered glass
Air make-up system
Air ventilation system quantity :Three units
Air inlet fan system 3 sets 11kw turbo fan , motor brand: Siemens motor
Exhausted fan system 3 sets 11kw turbo fan , motor brand: Siemens motor
Air inlet capacity 105000m3/h
Exhuasted capacity 105000m3/h
Exhausted ducting Four meters straight ducting and one 135 degrees elbow for each exhausted system
Purification system
Pre-filter G3 grade
Ceiling filter 600G filter EU5 / F5
Floor filter Fiberglass filter
Exhausted filter Filber glass and carbon filter
Heating system
Heat Exchanger SUS304 232KW stainless heating exchanger
Heating burner Three sets Riello RG5S diesel oil burner(gas burner for option)
Heating productivity 780000Kcal/hour
Spray to baking switch Pneumatic damper
Chimney ducting 4m straight chimney and one chimney hood for each air make-up system
heating temperature Maximum 80ºC
fuel consumption 10-16L/vehicle
Heating recovery system SUS 304 meterial made for enginergy recovery and saving
Lighting system
Material SUS 304 meterial made for enginergy recovery and saving
Ceiling lighting 30Units, each 4 *24W LED lamps.
Side lighting 36Units, each 4 * 24W LED lamps.
Illumination 1200LUX
Control system
Switch controlling Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge
All motors controlled by frequancy inverter.
