US$22,000.00-25,600.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Automatic Grade
Automatic
Application
Metal and More
Performance Classification
Economical CNC Machine Tools
Processing Precision
<=0.01
Transport Package
Wooden Box
Specification
2400*1700*1650mm
Production Capacity
2000 Pieces/Year
Packaging & Delivery
Package Size
240.00cm * 170.00cm * 165.00cm
Package Gross Weight
3800.000kg
Product Description
Basic Information

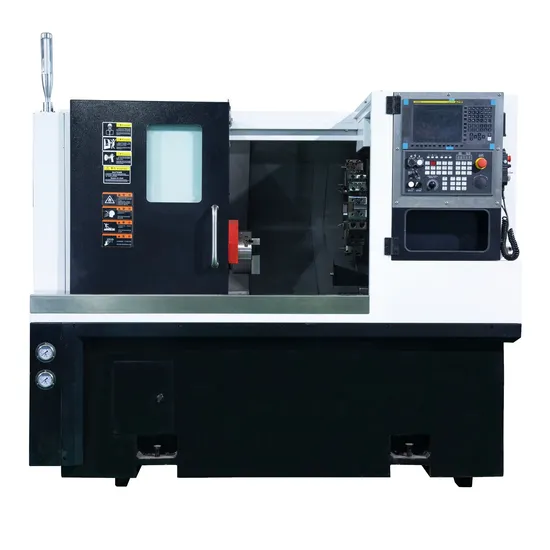

| Model | LA5000-450 | Name | Computerized Numerial Controlled Lathe Machine |
| X drive | 240 mm | Z drive | 450 mm |
| spindle bore | 62/86mm | Transport Package | Standard Plywood Package |
| Origin | Taizhou,China | Trademark | XINSHIHENG or Customized |
| Machine Weight | 3800kg | Machine Size | 2400*1700*1650mm |
| Installable Accessories | chat with supplier | HS Code | 8458.11 |
| Machine Bed | Horizontal Bed | Milling Cutter Structure | Integral |
| Specification | ISO9001 | Production Capacity | 100 set/month |
Product Description
Detailed Photos
Product Parameters
| No. | Name | Quantity | Supplier | Remark |
| 1 | System | 1 set | GSK980TB3i/ GSK980TC3 | |
| 2 | Spindle servo driver + AC servo Motor | 1 set | Weichuang | 11KW Electric spindle 11kw Servo motor |
| 3 | Hardware current loop servo driver + 23-bit 5-pole motor | each 1 set | GSK Original | X axis 1.5kw brake Z axis 1.5kw |
| 4 | Spindle front bearing NN3022K/3026k Angular contact ball bearing 7022/7026 | 1set | NSK | SKF | LYC | |
| 5 | Spindle rear bearing NN3018K/3022K | 1 set | NSK | SKF | LYC | |
| 6 | X,Z axis screw bearing | Each 1 set | NSK | SKF | LYC | |
| 7 | X,Z axis ball screw | Each 1 set | Haosen | |
| 8 | X axis linear guide rail | 2pcs | Taiwan(SHAC) | 45 roller |
| 9 | Z axis linear guide rail | 2pcs | Taiwan(SHAC) | 45 roller |
| 10 | Spindle | 1 | Xinshiheng | A2-6/A2-8 ∅62/∅ 86 |
| 11 | Turret | 1 | Taiwan Nafeng | 80--8T--330 |
| 12 | Cutting fluid pump | 1 | Zegong | |
| 13 | Auto Lubriction System | 1 | Qiangtong | |
| 14 | X,Z axis coupling | each 1 | Jiangsu | |
| 15 | Hydraulic Chuck | 1 | Dingchang | |
| 16 | Hydraulic tailstock | 1 | Xinshiheng | Mohs 5 |
Machining Capacity | Tool post specification | 80825 |
| Maximum turning diameter of the bed | mm | 500 |
| Standard machining diameter | mm | 280 |
| Maximum machining diameter | mm | 420 |
| Maximum machining length | mm | 450 |
| Bar machining diameter | mm | 74 |
| Stroke | X axis stroke | mm | 240 |
| Z axis stroke | mm | 450 |
Spindle | Speed | rpm | A2-6:3000 A2-8:2200 |
| Spindle nose | A2-6/A2-8 |
| Spindle hole diameter | mm | 62/86 |
| Bearing inner diameter | mm | 110/130 |
Turret | Tool post form | Straight mounted type |
| Tool install quantity | unit | 8/12 |
| the height of the rectangle tool shank | mm | 25 |
| Diameter of boring bar shank | mm | 32 |
Tailstock | Tailstock stroke | mm | 320 |
| Diameter of tailstock sleeve | mm | 75 |
| Taper of tail seat sleeve cone hole | MT.5 |
| Tailstock sleeve stroke | mm | 100 |
| Feeding velocity | Fast feeding velocity | m/min | X:24 / Z:30 |
Motor | Spindle motor (30min 60%/ continuous) | kW | 11/15 |
| Turret motor | kW | - |
| Feeding shaft motor | kW | X: 1.5 / Z: 1.5 |
| Hydraulic pump motor | kW | 1.5 |
| Cutting fluid motor | kW | 0.4 |
| Supply power | Power supply power | kVA | 15 |
Tank capacity | for hydraulic equipment | L | 65 |
| for lubrication oil | L | 3 |
| for cutting fluid | L | 120 |
| Machine tool volume | Height of machine | mm | 1700 |
| The height from the ground to the centerline of the spindle | mm | 1020 |
| Floor space | mm x mm | 2400 x 1650 |
| Weight | kg | 3800 |
Packaging & Shipping
Customer Receiving Goods
Company Profile
FAQ
1.What is the payment Terms?
A:30% initial payment when order,70% balance payment before shipment;lrrevocable LC at sight.When we receive theadvance payment,we will start to make production.when the machine is ready,we will take pictures to you.after we gotyour balance payment we will send the machine to you.
2. What is your trade terms? A:FOBCFRand CIF all acceptable.
3.When is the delivery time?
A: If the machine you will order is standard machinewe can ready the machine within 15days. if some special ma- chines will be some longer.You can place order accordingto delivery time and ship timewe willgive you the answer accordingly.
4. What is your trade terms?
A:FOB,CFRCIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MoQ is one set, lathe warranty is one year and system warranty is three vear
6. What is the package of the machines?
A:The machines standard will be packed in wood case.
7.how to guarantee the precision
In order to guarantee the high precision, we use integrate bed, and imported accessories, such as ball screw rod,Linear guide rail, automatic lubrication system, during the effective machining range, our machine can guarantee the error 0.01mm.
>>
