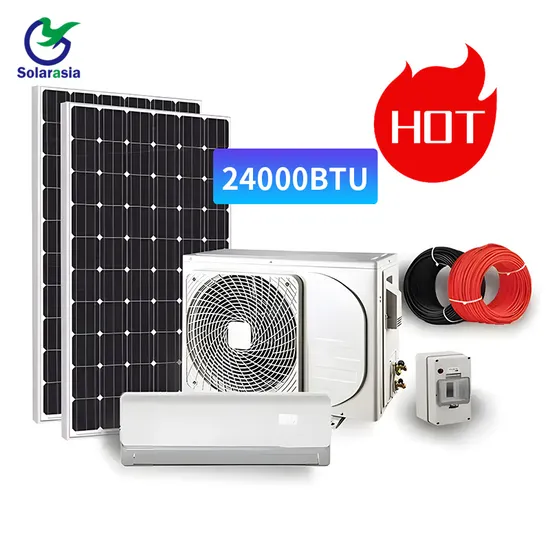

| DC48V off grid Solar Air Conditioner | ||||||
| Model | DGWA1-DC48V-09K | DGWA1-DC48V-12K | DGWA1-DC48V-18K | DGWA1-DC48V-24K | ||
| Climate Type | Tropical≤58 | T1/T3 | T1/T3 | T1/T3 | T1/T3 | |
| Power supply | Battery | DC | DC48V(46-58V) | DC48V(46-58V) | DC48V(46-58V) | DC48V(46-58V) |
| Rated Cooling | Capacity (T1) | W | 2600(1000-3400) | 3510(1000-3700) | 5070(1200-5250) | 6450(2500-7000) |
| BTU | 9000(3400-11600) | 12000(3400-12600) | 17300(4100-18000) | 22000(8500-23900) | ||
| Power input(T1) | W | 680(180-1060) | 980(200-1200) | 1450(220-1780) | 1840(450-2230) | |
| Rated Heating | Capacity | W | 2900(800-3050) | 3900(1000-4100) | 5250(1200-5500) | 7000(2000-7350) |
| Power input | W | 830(160-950) | 1130(180-1280) | 1400220-1830) | 2050(390-2350) | |
| T1 EER(W/W) /(BTU/W) | / | 3.90/13.20 | 3.60/12.25 | 3.50/11.8 | 3.50/11.85 | |
| COP(W/W) /(BTU/W) | / | 3.50/11.90 | 3.45/11.75 | 3.75/12.80 | 3.40/11.70 | |
| Dehumidification capacity | L/h | 1.0 | 1.3 | 1.7 | 2.5 | |
| Compressor | Model | / | ASK89D53UEZ | ASN98D22UFZ | WHP05600 | 5RD198 |
| Tyре | / | Rotary inverter | Rotary inverter | 2xRotary inverter | 2xRotary Inverter | |
| Brand | / | GMCC | GMCC | HIGHLY | Panasonic | |
| Indoor fan motor | Model | / | BLDC 15W | BLDC 15W | BLDC 45W | BLDC 45W |
| Indoor noise level (Turbo) | dB(A) | / | 40 | 42.5 | 46 | 50 |
| Indoor unit | Dimension(W*H*D) | mm | 840x205x295 | 840x205x295 | 1080x330x237 | 1080x330x237 |
| Packing (W*H*D) | mm | 920x290x360 | 920x290x360 | 1140x300x382 | 1140x300x382 | |
| NetGross weight | kg | 9.0/12.5 | 9.0/12.5 | 15.0/18.5 | 15.0/18.5 | |
| Outdoor fan motor | Model | BLDC 40W | BLDC 40W | BLDC 55W | BLDC 75W | |
| Outdoor coil | a.Number of rows | 1 | 2 | 2 | 2 | |
| Outdoor noise level | dB(A) | 51 | 52 | 55 | 58 | |
| Outdoor unit | Dimension(W*H*D) | mm | 802x564x323 | 802x564x323 | 802x564x323 | 900x700x337 |
| Packing (W*H*D) | mm | 910x622x405 | 910x622x405 | 910x622x405 | 1006x755x418 | |
| Net/Gross weight | kg | 28.0/32.0 | 32.0/36.0 | 36.0/40.0 | 51/56 | |
| Refrigerant Type | / | R410a | R410a | R410a | R410a | |
